Type1 J1772 Portable EV Charger Box Cable Adjustable 32 A 240V 7kw Electric Vehicle Charging Compatible for All EV Cars

Short Description:

Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents

Higher quality TPU cable – The gun wire is made of high-strength TPU material, which is more resistant to high and low temperature, corrosion resistance, and tensile performance than TPE, and the cost is also higher

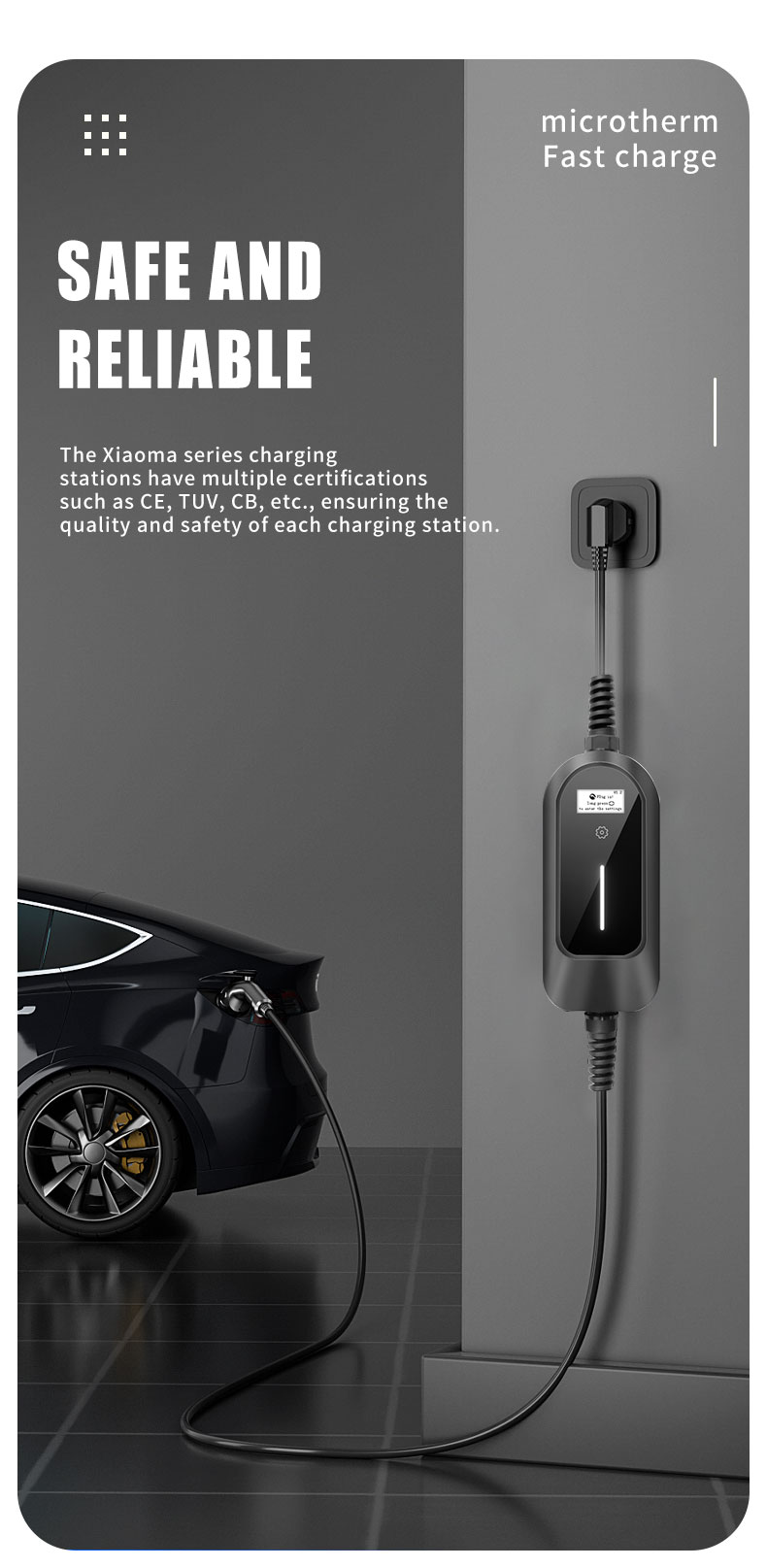

HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

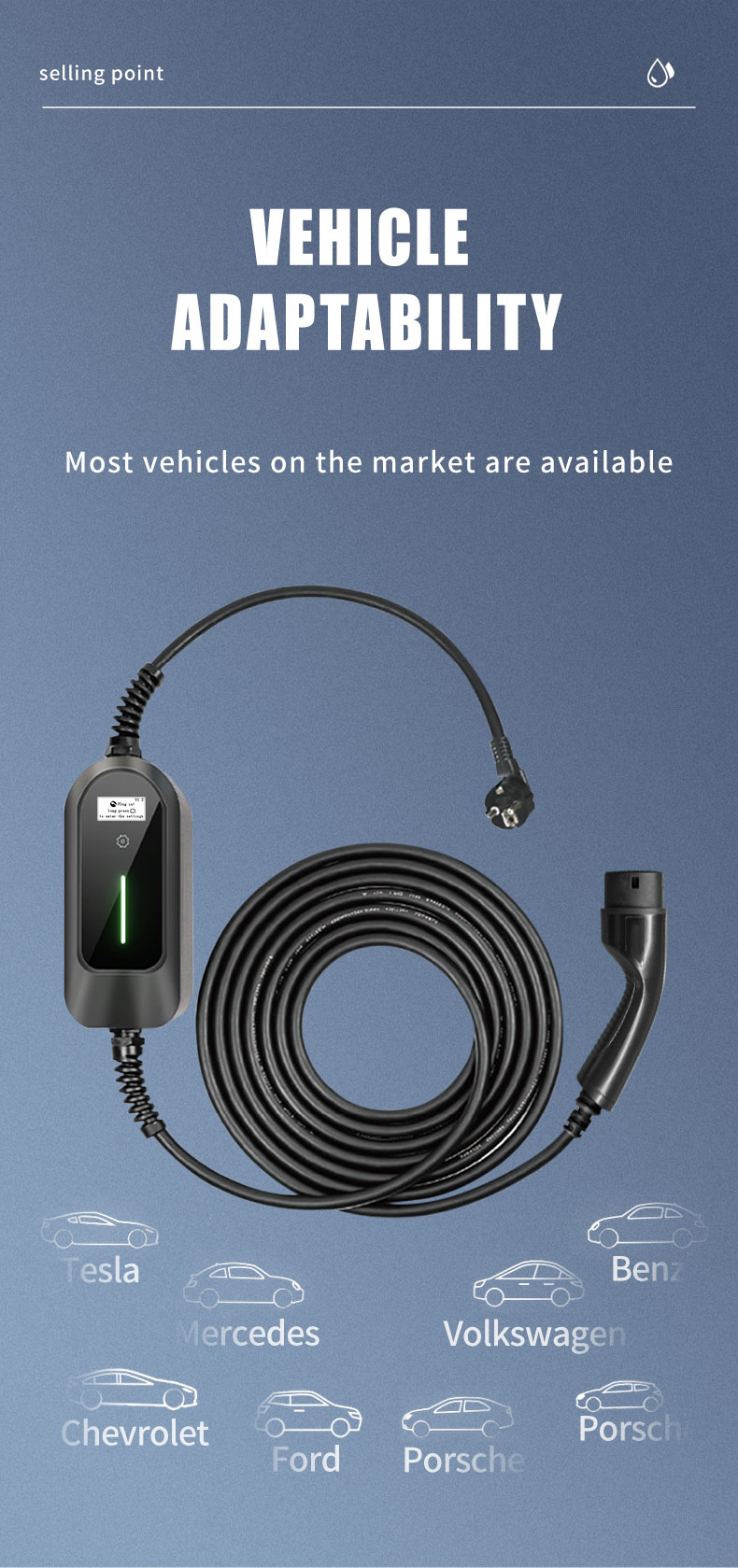

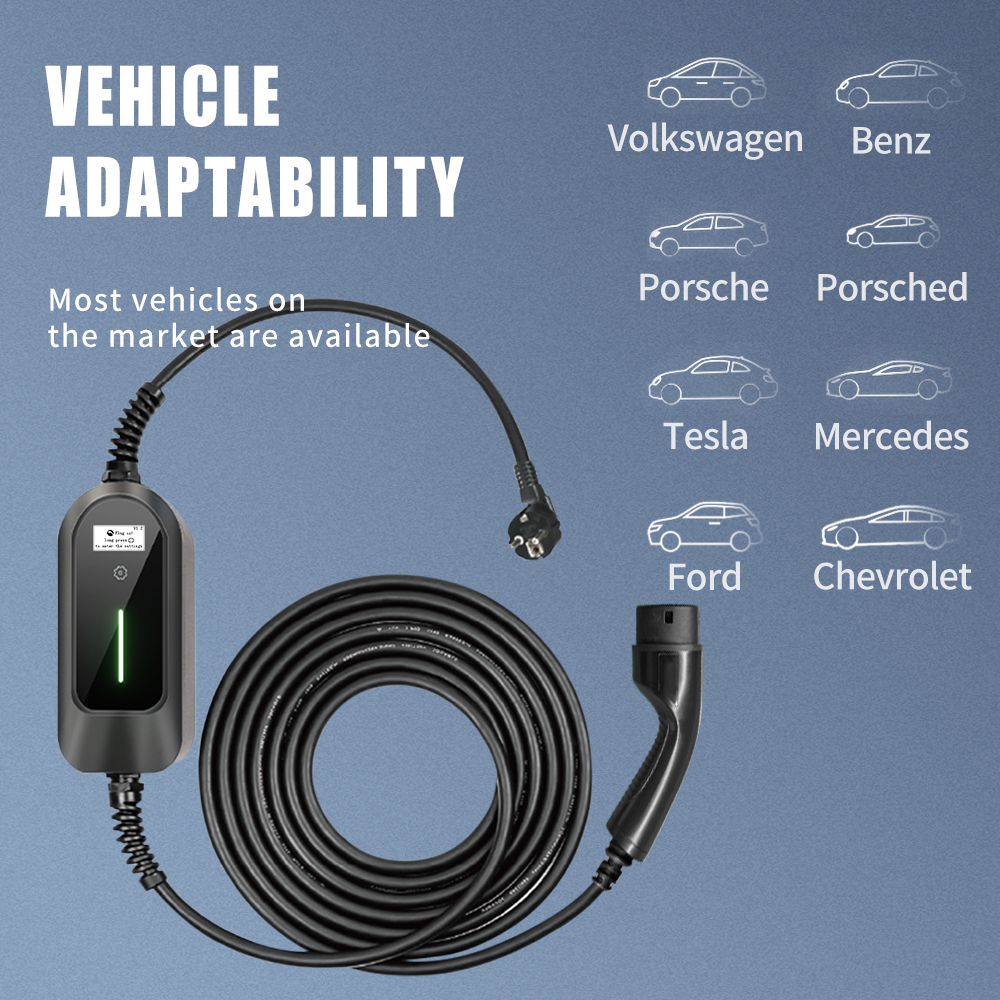

UNIVERSAL – The charger is SAE J1772 compliant and capable of charging hybrid/plug-in electric vehicles.

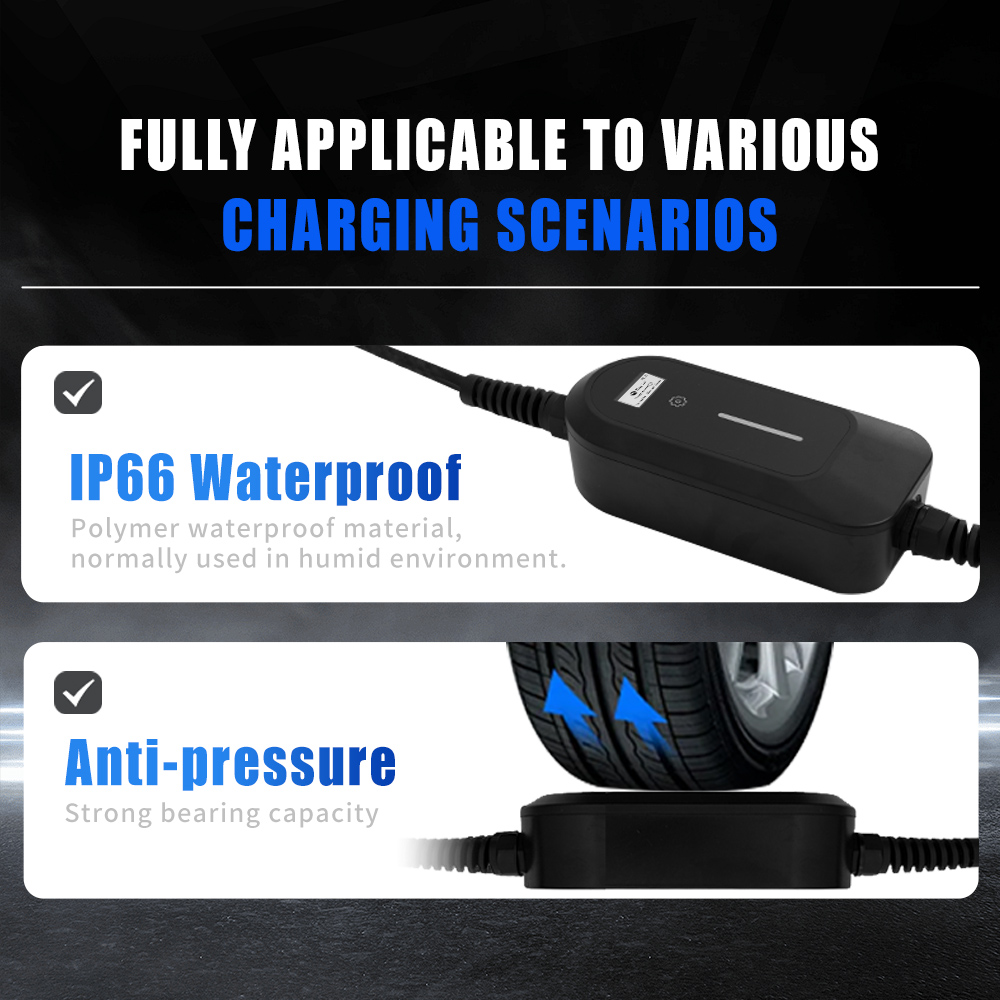

Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

Professional customer service- Hengyi’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

DISPLAY SCREEN Our charger features a real time data screen that displays relevant information such as, real-time charging amperage, actual charging voltage, total kilowatt consumption, current temperature, and other informative data values.


  • Dimension: 195(H) × 95(W) × 55(D)mm
  • User Interface: 1.3 inch OLED Display with 4*LED Indicator light
  • Cable length: 5m standard, 10m or other size customizable
  • Weight: 2.4kg (Including charging gun)
  • Input voltage: 220V
  • Power rating: 7KW
  • Output voltage: AC220V±20%
  • Output current: 32A
  • Power supply interface: Industriall waterproof plug
  • Charging interface: SAE J1772
  • Product Detail

    RELATED VIDEOS

    Product Tags

    The Portable EV Charger is simple to use, all you need to do is plug it into the PLUG outlet and then plug the charging gun into the charging port device will start charging your EV’s battery. The operating temperature of the product is -40°C – +65°C. The protection class of the charging box is IP65 and the protection class of the charging gun is IP55 (when plugged in). The outer jacket of the charging cable is made of TPU, which is resistant to corrosion, abrasion and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use. The product manual has LED indicators corresponding to the different states of the fault code, so you can easily troubleshoot the problem to understand the operation of the equipment. After dealing with external faults only need to re-plug the power plug to let the device to complete the restart can continue to charge. The product provides a 12-month warranty and long-term technical support. Any problem can be solved for you by contacting us.

    Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

    Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents

    Higher quality TPU cable – The gun wire is made of high-strength TPU material, which is more resistant to high and low temperature, corrosion resistance, and tensile performance than TPE, and the cost is also higher

    HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

    UNIVERSAL – The charger is SAE J1772 compliant and capable of charging hybrid/plug-in electric vehicles.

    Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

    Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

    Professional customer service- Hengyi’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

    DISPLAY SCREEN Our charger features a real time data screen that displays relevant information such as, real-time charging amperage, actual charging voltage, total kilowatt consumption, current temperature, and other informative data values.



    Structure Appearance

    Dimension

    195(H) × 95(W) × 55(D)mm

    User Interface

    1.3 inch OLED Display with 4*LED Indicator light

    Cable length

    5m standard, 10m or other size customizable

    Weight

    2.4kg (Including charging gun)

    Electrical Specification

    Input voltage

    220V

    Frequency

    45-65Hz

    Power rating

    7KW

    Measurement accuracy

    Grade 1.0 on-board

    Output voltage

    AC220V±20%

    Output current

    32A

    Standby power

    ≤1W

    Interface Design

    Power supply interface

    Industriall waterproof plug

    Charging interface

    SAE J1772

    Safety Design

    Design standard

    SAE J1772、IEC 61851、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077

    Protection

    Overvoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection

    EMC Level

    EMS automotive electronics standards,EMl Class B limit

    Operating Environment

    Working temperature

    -40-+65℃

    Working Humidity

    5%-95% no condensation

    Working altitude

    ≤4000m

    Flame retardant properties

    UL94-V0

    IP grade

    ≥IP65

    Cooling mode

    Natural cooling

    Applicable

    Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration

    Special protection

    Anti- Uv design, anti-vehicle rolling design

    MTBF

    ≥100000H

    Optional

    Plug temperature control

    Standard
