TUV 7.2kW 32A 3*6.0mm2+2*0.5mm2 EV Cable AC EV Charging Cable

3G2.5mm²+2*0.5mm² EV Wire AC EV Cable Leads

Parameters

● Model: 32A wire for EV charging
● SPEC: 3*6mm²+2*0.5mm²
● Reference Standard: TUV 2PfG 1908
● Reted current: 32A
● Working voltage: 450/750V AC
● Bebding Radius: ≥ 8D
● Retarding Test: IEC60332-1
● Smoke Density: IEC61034, EN50268-2
● Stewed acid gas release quantity: IEC670754-1, EN50267-2-1
● Heat, cold, wear-resisting to ozone ultraviolet light
● Working temperature: -45°C ~+ 125°C
● CE, TUV, UL approved

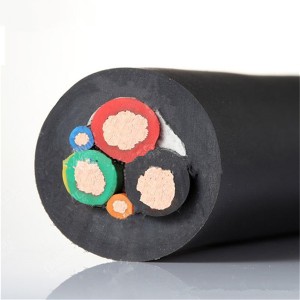

32A Single Phase Charging Wire for EV (Electric Vehicle) ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.

32A Single Phase Charging Wire for EV (Electric Vehicle)

● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; Cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, etc.

● This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.
