Portable EV Charger Type 2 16A 1 Phase 3.5kw EU Plug Switchable Current EV Charging Box Controller for Electric Car
The Portable EV Charger is simple to use, all you need to do is plug it into the PLUG outlet and then plug the charging gun into the charging port device will start charging your EV’s battery. The operating temperature of the product is -40°C – +65°C. The protection class of the charging box is IP65 and the protection class of the charging gun is IP55 (when plugged in). The outer jacket of the charging cable is made of TPU, which is resistant to corrosion, abrasion and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use. The product manual has LED indicators corresponding to the different states of the fault code, so you can easily troubleshoot the problem to understand the operation of the equipment. After dealing with external faults only need to re-plug the power plug to let the device to complete the restart can continue to charge. The product provides a 12-month warranty and long-term technical support. Any problem can be solved for you by contacting us.
★Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.
★Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents
★Higher quality TPU cable – The gun wire is made of high-strength TPU material, which is more resistant to high and low temperature, corrosion resistance, and tensile performance than TPE, and the cost is also higher
★HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

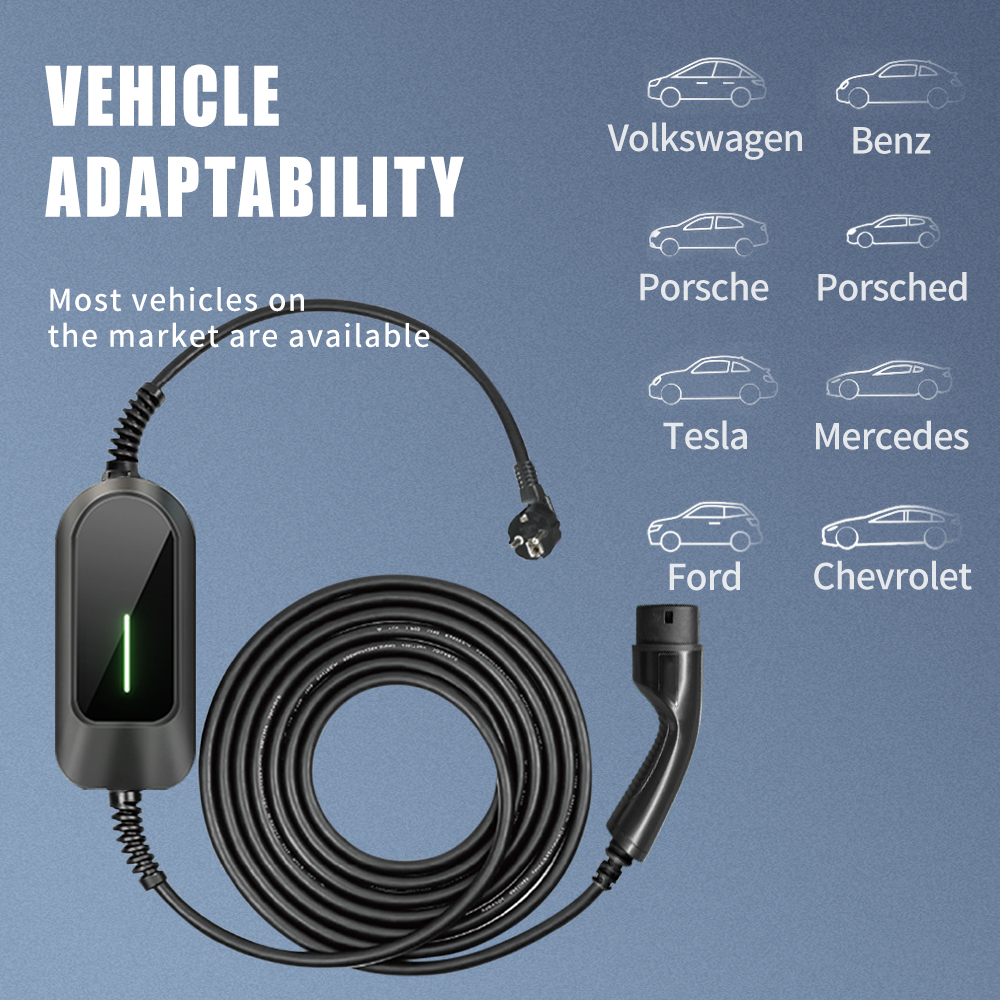

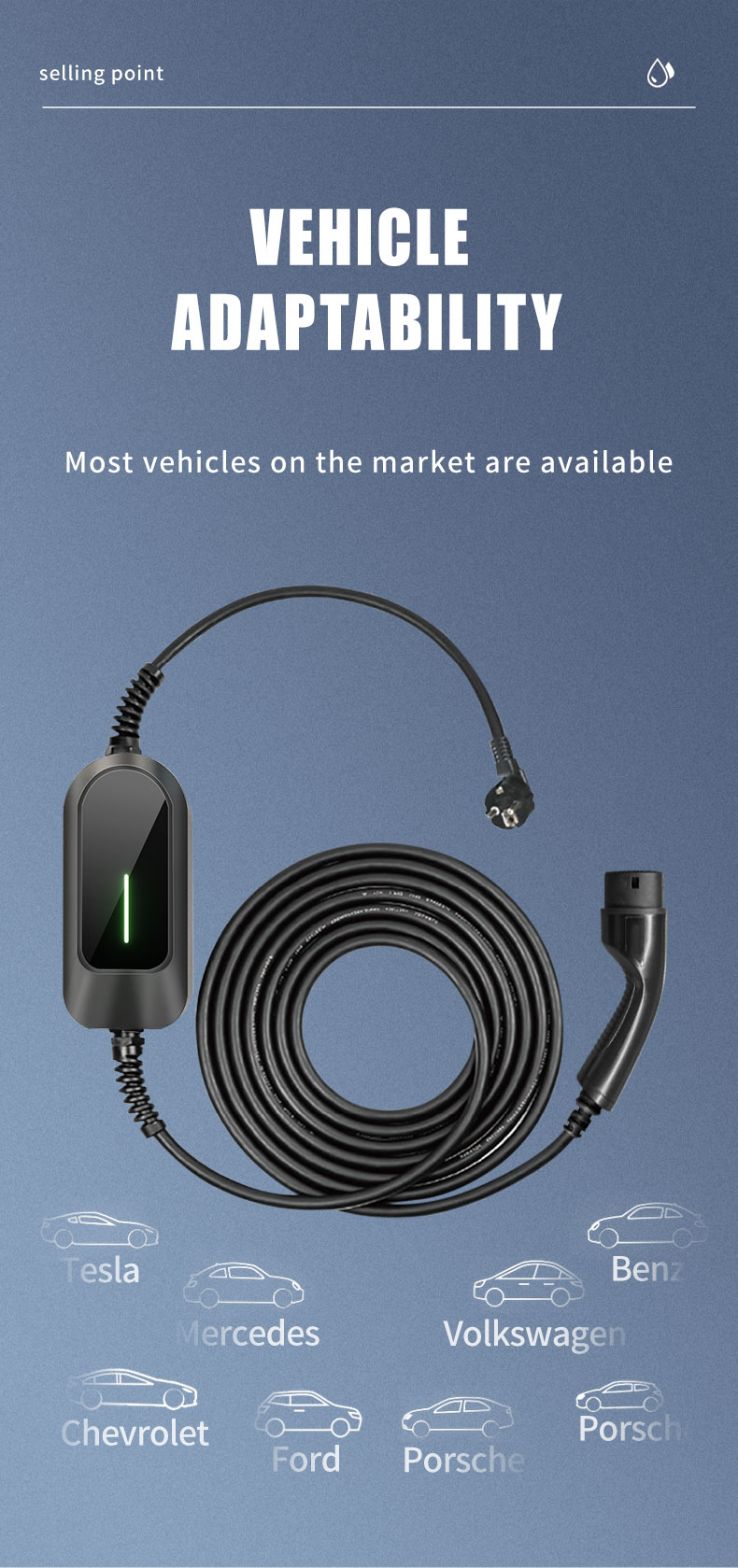

★UNIVERSAL – The charger is SAE J1772 compliant and capable of charging hybrid/plug-in electric vehicles.

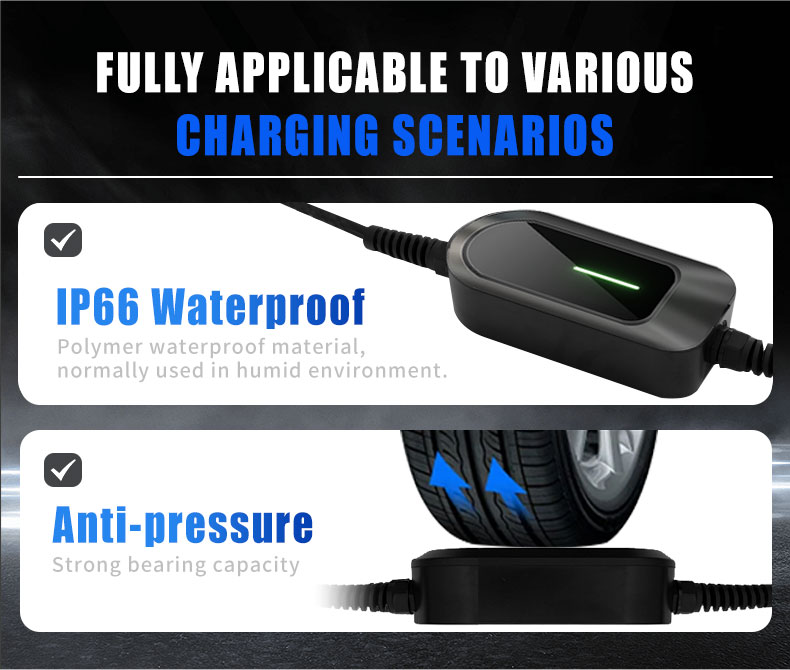

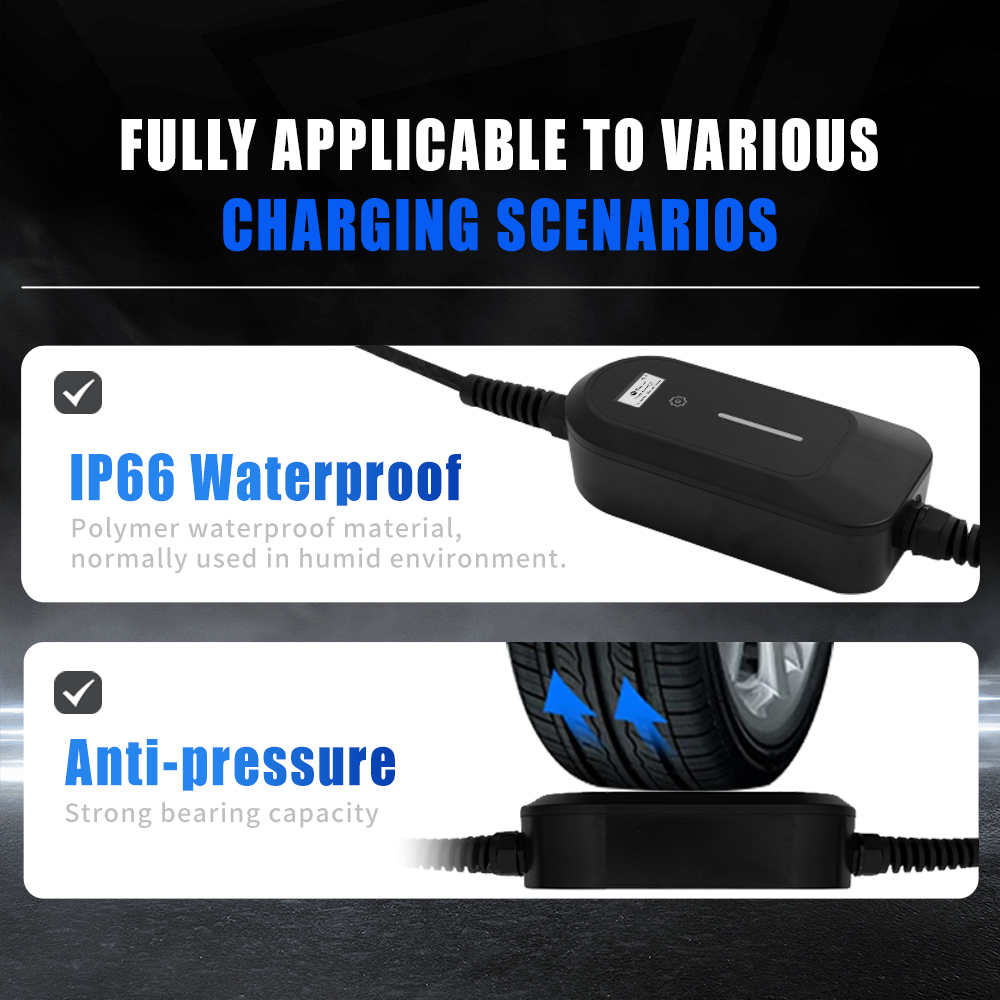

★Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out
★Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.
★Professional customer service- Hengyi’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!
Structure Appearance |
Dimension |
195(H) × 95(W) × 55(D)mm |
User Interface |
4*LED Indicator light |
|
Cable length |
5m standard, 10m or other size customizable |
|
Weight |
2.4kg (Including charging gun) |
|
Electrical Specification |
Input voltage |
220V |
Frequency |
45-65Hz |
|
Power rating |
3.5KW |
|
Measurement accuracy |
Grade 1.0 on-board |
|
Output voltage |
AC220V±20% |
|
Output current |
16A |
|
Standby power |
≤1W |
|
Interface Design |
Power supply interface |
SCHUKO plug |
Charging interface |
SAE J1772 |
|
Safety Design |
Design standard |
SAE J1772、IEC 61851、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077 |
Protection |
Overvoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection |
|
EMC Level |
EMS automotive electronics standards,EMl Class B limit |
|
Operating Environment |
Working temperature |
-40-+65℃ |
Working Humidity |
5%-95% no condensation |
|
Working altitude |
≤4000m |
|
Flame retardant properties |
UL94-V0 |
|
IP grade |
≥IP65 |
|
Cooling mode |
Natural cooling |
|
Applicable |
Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
|
Special protection |
Anti- Uv design, anti-vehicle rolling design |
|
MTBF |
≥100000H |
|
Optional |
Plug temperature control |
Standard |
