IEC 62196-2 EV Charger 16A 32Amp 3 Phase Type 2 Female EV Connector Socket for Wallbox

Short Description:

Meet 62196-2 IEC 2010 SHEET 2-IIa standard. Nice appearance，up flip protection,support front and back installation. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance,impact resistance and high oil. Excellent protection performance,protection grade IP44(working condition)IEC 62196-2 EV Charging Outlet 32Amp Type 2 Male EV Connector Socket Outlet With our prosperous working experience and thoughtful solutions, now we have been regarded to be a dependable supplier for lots of intercontinental prospective buyers.With the first-class merchandise, excellent service, fast delivery and the best price, we’ve won highly praise foreign.

Rated current: 16A 32A Three Phase

Operating voltage: 240V AC

Insulation resisitance: >1000MΩ(DC500V)

Therminal temperature rise: <50K

Withstand voltage: 2000V

Working temperature: -30°C ~+50°C

Contact impedance: 0.5m Max

Send email to us

Product Detail

Product Tags

Our team through qualified training. Skilled professional knowledge, powerful sense of support, to satisfy the support desires of consumers for J1772 Evse, Commercial Ev Charging Station, Vehicle Charging Stations, Quality is factory's life , Focus on customers' demand is the source of company survival and development, We adhere to honesty and good faith working attitude, looking forward to your coming !

IEC 62196-2 EV Charger 16A 32Amp 3 Phase Type 2 Female EV Connector Socket for Wallbox Detail:

Electrical Performance

Features

1. Meet 62196-2 IEC 2010 SHEET 2-IIa standard

2. Nice appearance，up flip protection,support front and back installation

3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance,impact resistance and high oil

4. Excellent protection performance,protection grade IP44(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Coupled insertion force:>45N<80N

Electrical Performance

1. Rated current：16A/32A

2. Operation voltage： 250/415V

3. Insulation resistance：＞1000MΩ（DC500V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：2000V

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Conntact bush：Copper alloy,silver plating

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model

Rated current

Cable specigication

V2-HYIEC2a-G-EV16S

16A Single phase

16A Three phase

3 X 2.5mm² + 2 X 0.5mm²

5 X 2.5mm² + 2 X 0.5mm²

V2-HYIEC2a-G-EV32S

32A Single phase

32A Three phase

3 X 6mm²+ 2 X 0.5mm²

5 X 6mm²+ 2 X 0.5mm²

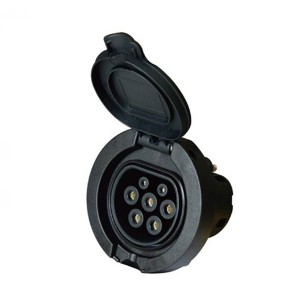

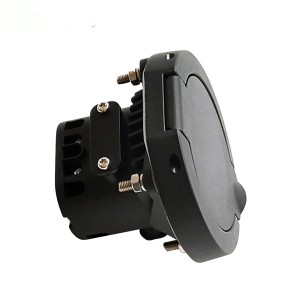

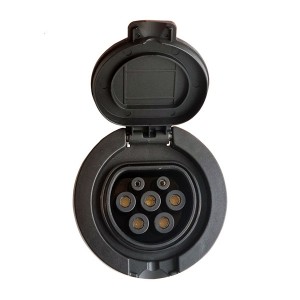

Product detail pictures:
