All we do is usually connected with our tenet Customer to start with, Rely on initial, devoting on the food packaging and environmental protection for J1772 Tesla, 32a Ev Charging Cable, Electric Vehicle Home Charging Station, Let's cooperate hand in hand to jointly make a beautiful future. We sincerely welcome you to visit our company or contact us for cooperation!
Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi Detail:

The Portable EV Charger is simple to use, all you need to do is plug it into the PLUG outlet and then plug the charging gun into the charging port device will start charging your EV’s battery. The operating temperature of the product is -40°C – +65°C. The protection class of the charging box is IP65 and the protection class of the charging gun is IP55 (when plugged in). The outer jacket of the charging cable is made of TPU, which is resistant to corrosion, abrasion and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use. The product manual has LED indicators corresponding to the different states of the fault code, so you can easily troubleshoot the problem to understand the operation of the equipment. After dealing with external faults only need to re-plug the power plug to let the device to complete the restart can continue to charge. The product provides a 12-month warranty and long-term technical support. Any problem can be solved for you by contacting us.

Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents

Higher quality TPU cable – The gun wire is made of high-strength TPU material, which is more resistant to high and low temperature, corrosion resistance, and tensile performance than TPE, and the cost is also higher

HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

UNIVERSAL – The charger is SAE J1772compliant and capable of charging hybrid/plug-in electric vehicles.

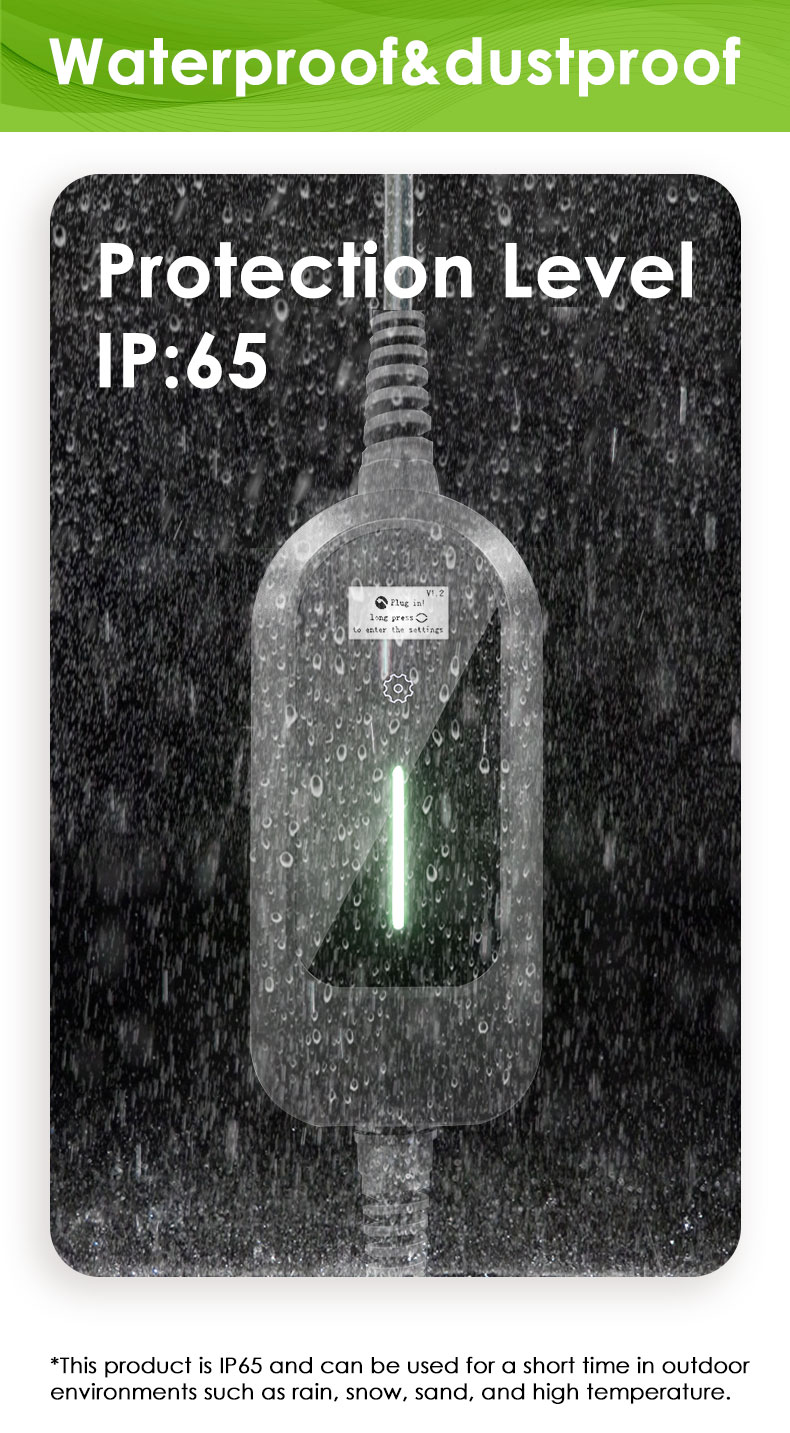

Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

Professional customer service- Hengyi’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

DISPLAY SCREEN Our charger features a real time data screen that displays relevant information such as, real-time charging amperage, actual charging voltage, total kilowatt consumption, current temperature, and other informative data values.

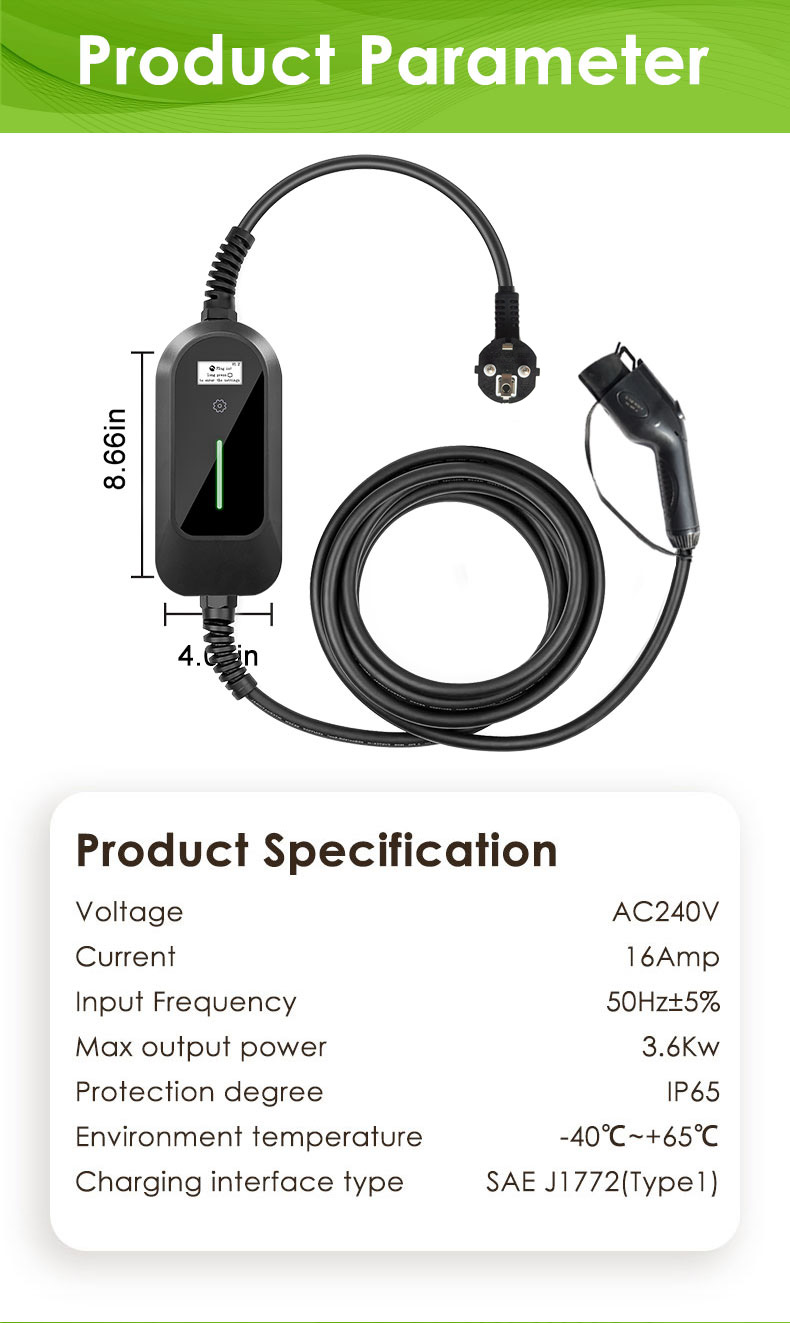

Structure Appearance

Dimension

195(H) × 95(W) × 55(D)mm

User Interface

1.3 inch OLED Display with 4*LED Indicator light

Cable length

5m standard, 10m or other size customizable

Weight

2.4kg (Including charging gun)

Electrical Specification

Input voltage

220V

Frequency

45-65Hz

Power rating

3.5KW

Measurement accuracy

Grade 1.0 on-board

Output voltage

AC220V±20%

Output current

16A

Standby power

≤1W

Interface Design

Power supply interface

SCHUKO plug

Charging interface

SAE J1772

Safety Design

Design standard

SAE J1772、IEC 61851、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077

Protection

Overvoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection

EMC Level

EMS automotive electronics standards,EMl Class B limit

Operating Environment

Working temperature

-40-+65℃

Working Humidity

5%-95% no condensation

Working altitude

≤4000m

Flame retardant properties

UL94-V0

IP grade

≥IP65

Cooling mode

Natural cooling

Applicable

Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration

Special protection

Anti- Uv design, anti-vehicle rolling design

MTBF

≥100000H

Optional

Plug temperature control

Standard

详情页 (3) 详情页 (4) app_05 详情页 (2)详情页 (6)




Product detail pictures:

Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi detail pictures

Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi detail pictures

Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi detail pictures

Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi detail pictures

Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi detail pictures

Hot Sale for Portable Ev Charger Level 2 - HENGYI Portable EV Charger Type1 SAE J1772 16A EVSE Charging Cable EU Plug Controller Wallbox for Electric Car – Hengyi detail pictures
