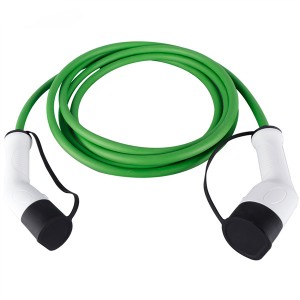

EV Charging Cable 3.6kW 16A ev charger type 2 to type 2

Short Description:

EV Charging Cable 3.6kW 16A ev charger type 2 to type 2.We can customise the colour of the rechargeable gun case to suit your needs. The colours available now are white and black, which are the regular products. If you need other colours, we have certain requirements for the minimum order quantity of the product, for example when you order more than 1000PCS at one time, we can mould the colour of the rechargeable gun into blue, yellow or other colours according to your requirements. We will send you some samples to confirm before the official production, to prevent the colour difference between the actual colour and the one you want due to the colour difference in the photos or videos taken.

Rated Current: 16A ,32Amp (Adjustable)

Operating Voltage: 250V~480V AC

Insulation Resisitance: >1000MΩ

Therminal Temperature rise: <50K

Withstand Voltage: 2000V

Send email to us

Product Detail

Product Tags

EV Charging Cable 3.6kW 16A ev charger type 2 to type 2

Features
1.Conform to the provisions and requirements of IEC 62752, IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196
