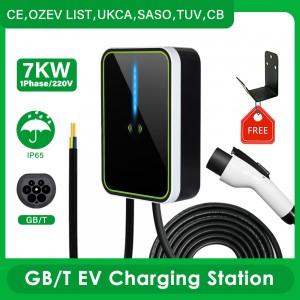

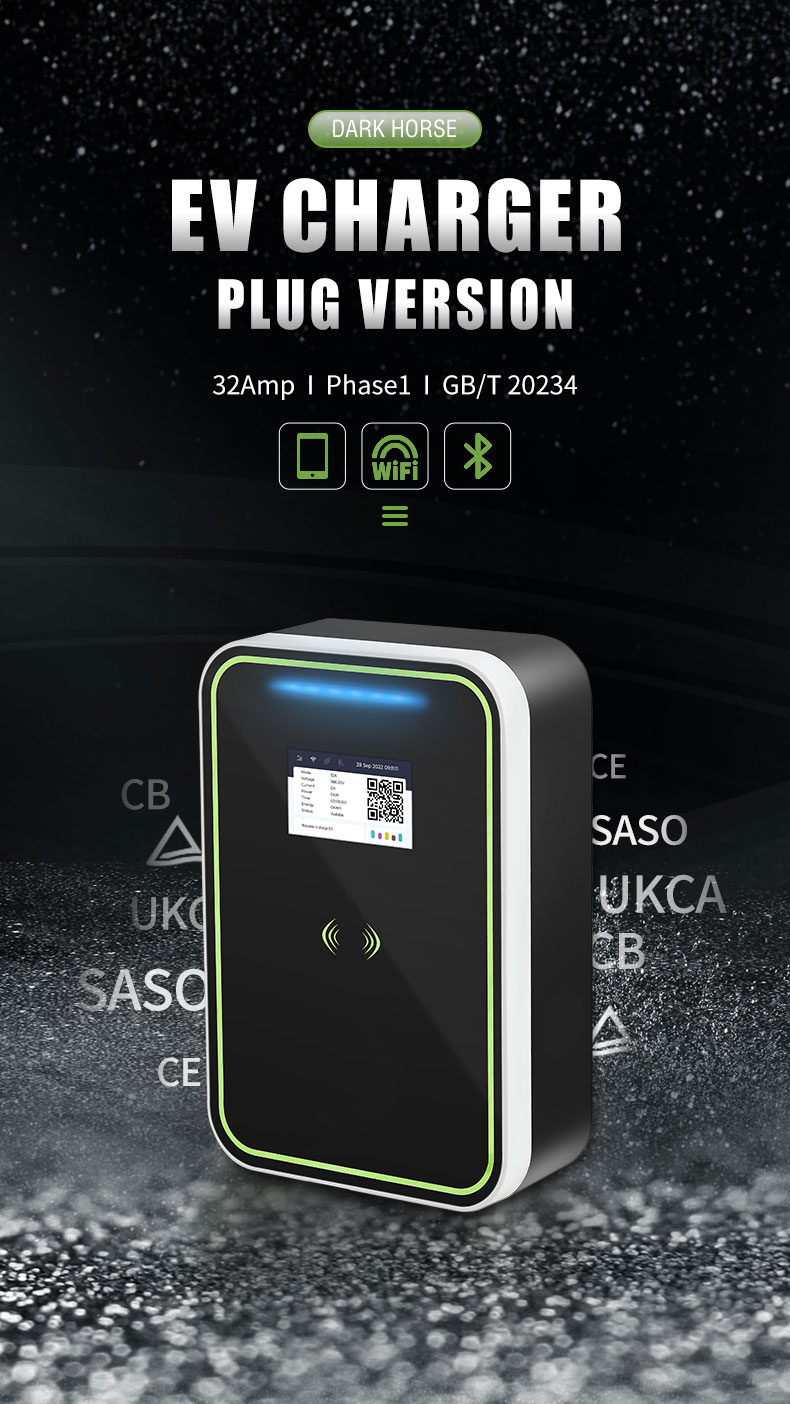

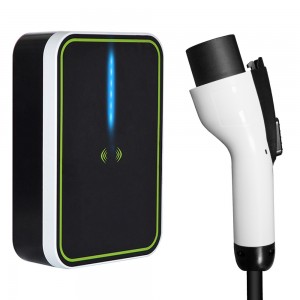

EV Charger Electric Vehicle Charging Station EVSE Wallbox 32Amp with GB/T Cable 7KW 1Phase home wallbox

Short Description:

The EV Charger 32A GB/T 20234 220V,casing colours available in black and white, customised casing colours and charging string lengths available for larger orders. Compatible with GB/T 20234 , Designed with safety in mind, there are protection mechanisms forover-current,over-voltage andover-temperature problems, with a aggregate of 8 safety measures to cover the device and the auto during charging. The casing is made of ABS PC injection moulding and has a fire standing of UL94V_0. The factors of the main board are handed in well- known manufacturers, with dependable quality. The main control MCU is characterised by low power consumption, high performance and high integration. The operating temperature covers-40 °C-85 °C, which can meet the harsh working terrain.The EV charging string is made of high chastity bobby with excellent electrical conductivity, slow heating of the captain during high current charging and long operating time. The external cover is made of high quality cable, which is resistant to erosion and low temperatures, so that the charging string won’t harden due to low temperatures and help the device from working duly. Easy to install, it’s recommended to use hard wiring for the input power string. The installation height of the charging device is about1.5 M from the ground. a hook is included to store the ev charging string.

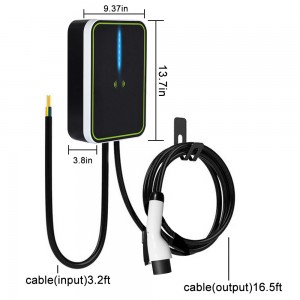

Dimension: 350(H) × 240(W) × 95(D)mm

User Interface: Indicator light

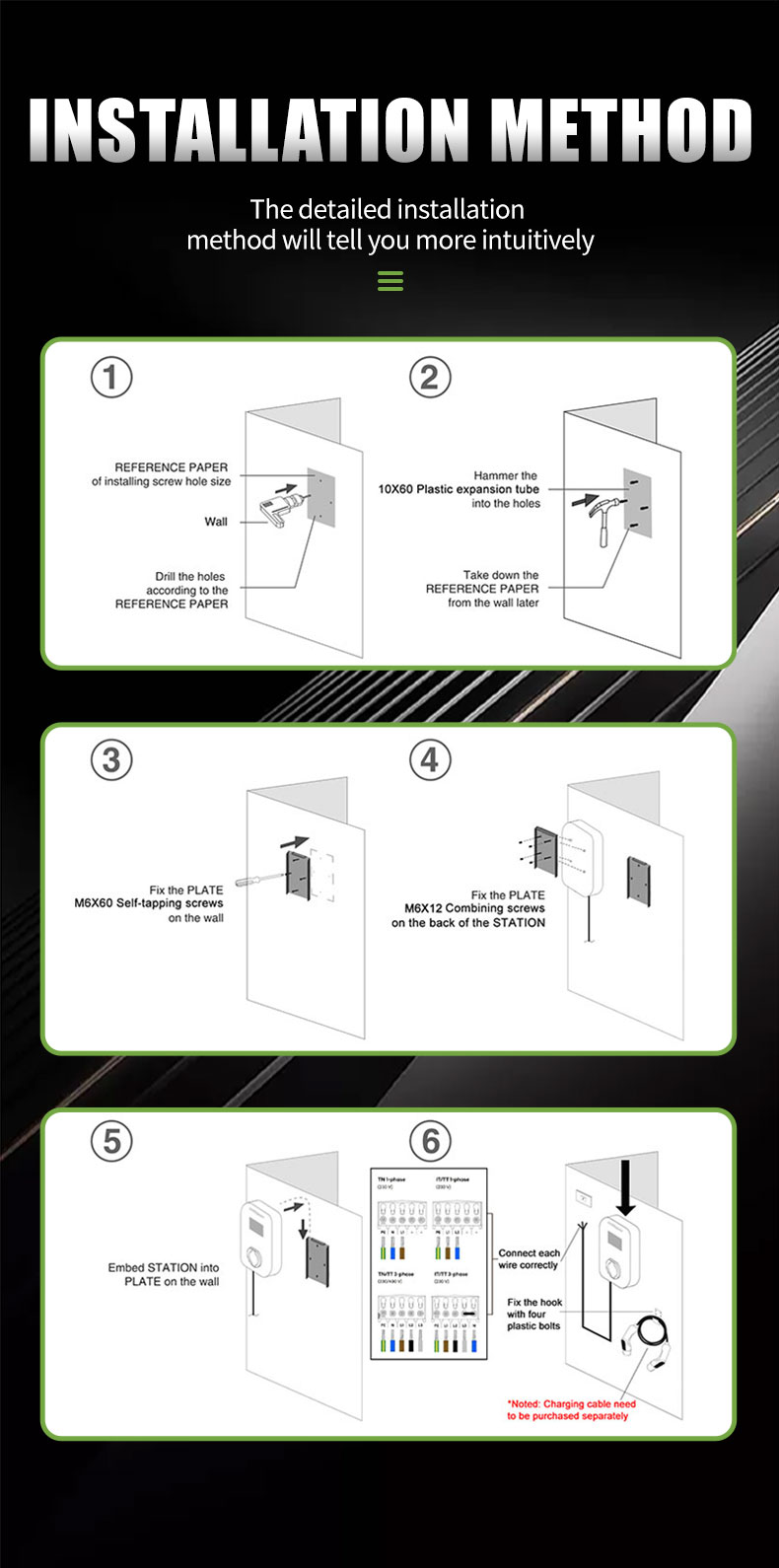

Installation method: Wall-mounted Type/Floor-standing Type Installation

Cable length: 5M(16.4FT) standard,7.5m / 10m or other size customizable

Weight: 8.0kg (Including charging gun)

Input voltage: 220V

Power rating: 7KW

Output voltage: AC220±20%

Output current: 32A

Design standard: GB/T 20234

Send email to us

Product Detail

Product Tags

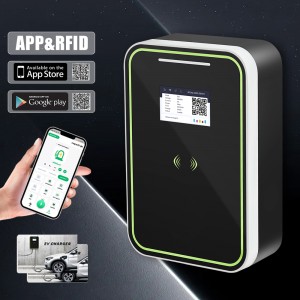

Dark Horse AC electric car charger 7KW is in an elegant design. It follows GB/T 20234, 7KW, 220V, 32A, 3 functions optional such as plug and plays/ RFID card authorization/APP make it very suitable for home charging. High performance charging control board of our best 7KW EV charger is compatible with all styles of electric vehicle charging. Leakage protection , Upgrade to Type A 30mA AC (single phase) and IP65 waterproof and UV protection ABS casing ensure trustability and safety. It provides customers with quality, security and a friendly charging experience.

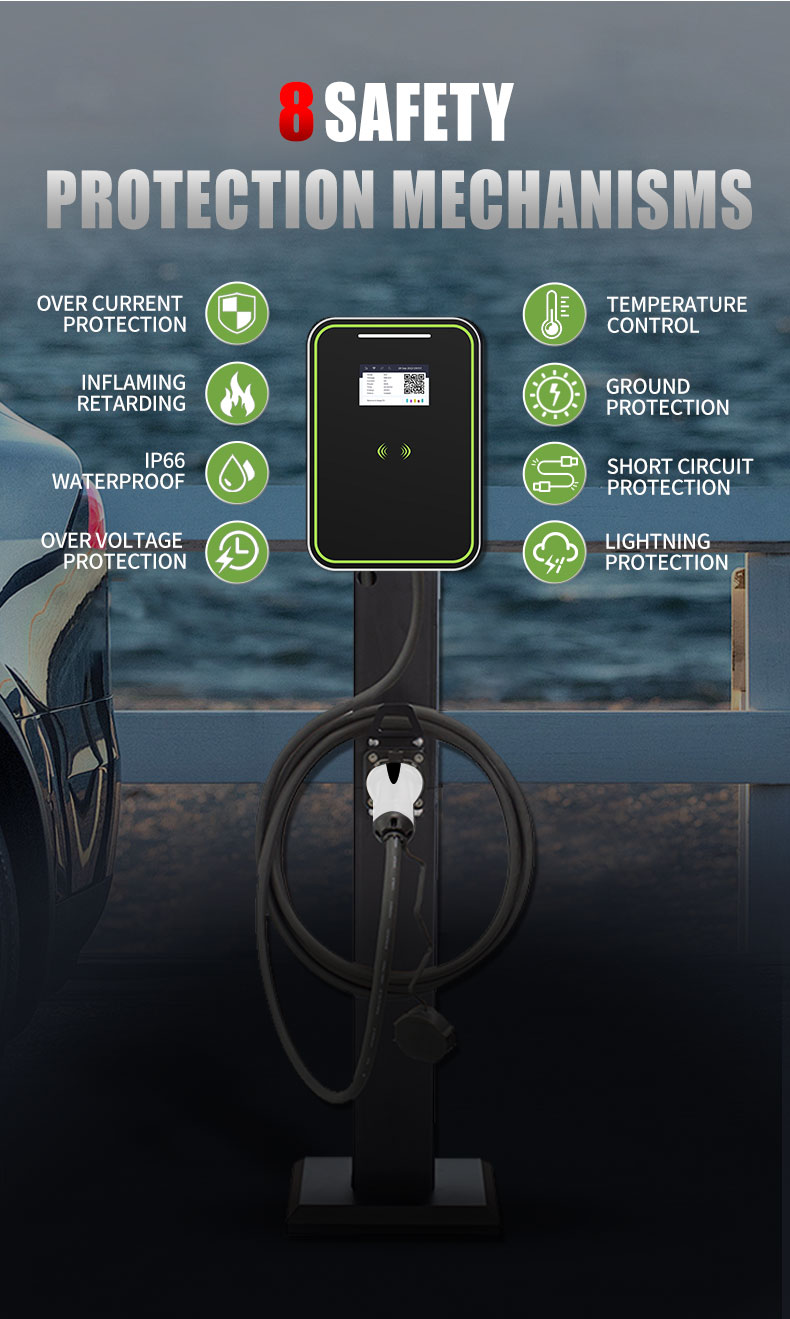

★Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

★Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents

★HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

★UNIVERSAL – The charger is GB/T 20234 compliant and capable of charging hybrid/plug-in electric vehicles.

★Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

★Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

★Professional customer service – HENGYI’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

Structure Appearance	Dimension	350(H) × 240(W) × 95(D)mm
	User Interface	Indicator light
	Installation method	Wall-mounted Type/Floor-standing Type Installation
	Wiring method	Bottom enter&out

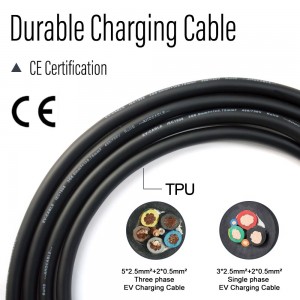

	Cable length	5M(16.4FT) standard,7.5m / 10m or other size customizable
	Weight	8.0kg (Including charging gun)
Electrical Specification	Input voltage	220V
	Frequency	45-65Hz
	Power rating	7KW
	Measurement accuracy	OBM 1.0
	Output voltage	AC220±20%
	Output current	32A
	Standby power	3KW
Function	Indicator light	YES
Function	Display	NO
Protection	Design standard	GB/T 20234
Protection	Protection	Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection
Operating Environment	Working temperature	-40-+65℃
	Working Humidity	5%-95% no condensation
	Working altitude	≤3000m
	IP grade	≥IP65
	Cooling mode	Natural cooling
	Applicable	Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration
	Special protection	UV resistance
	MTBF	≥100000H
Optional	Installation components	Stand pillar (customize)
	Communication interface	WIFI/4G/OCPP1.6/LAN (customize)
	RFID	2 user cards (customize)
	Leakage protection	Upgrade to Type A 30mA AC (single phase)

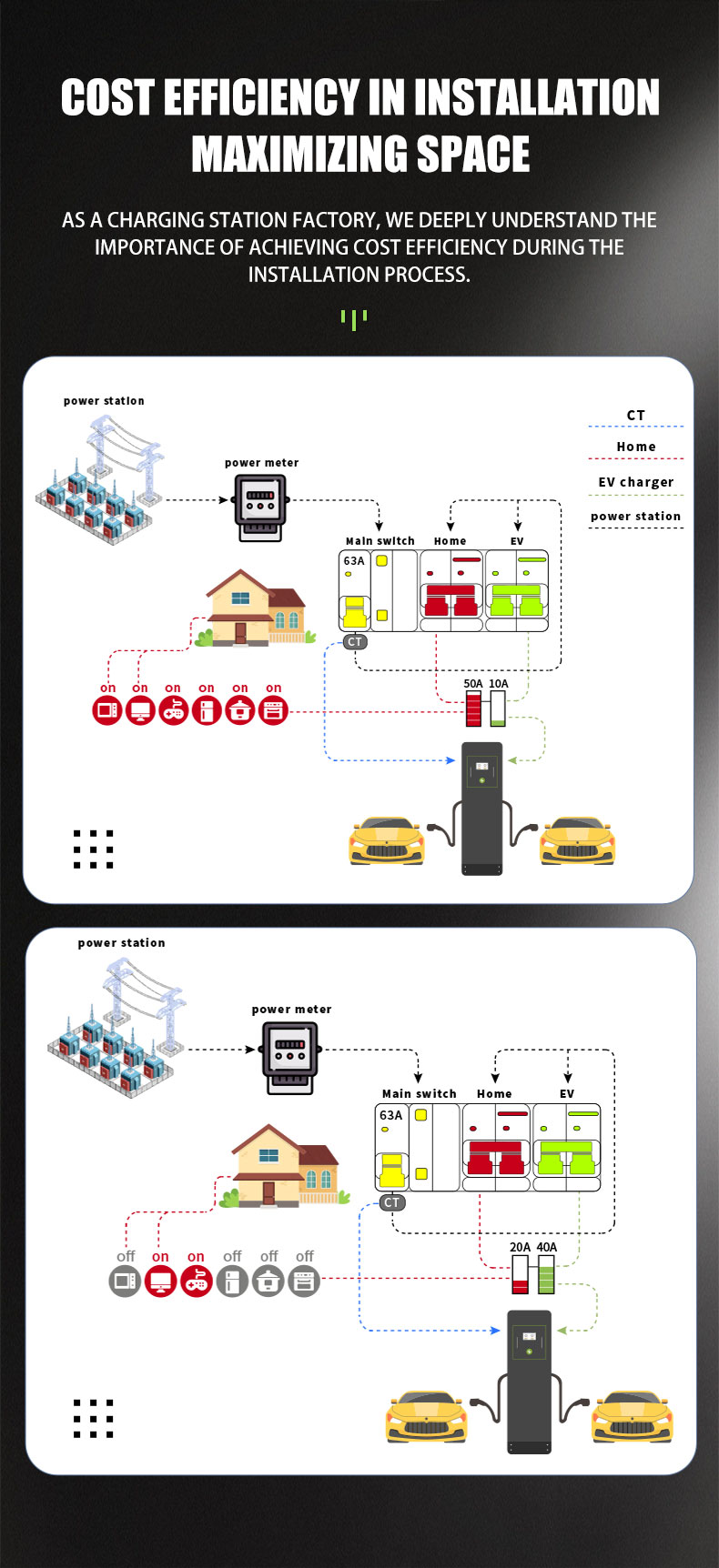

	Home load balancing	DLB(customize)
	Socket outlet	Change charging cable to socket(not support SAE standard)
	Product properties	APP(customize)
