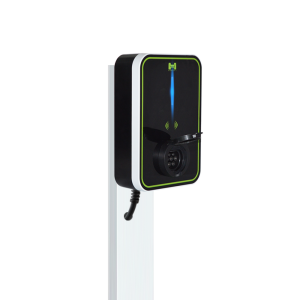

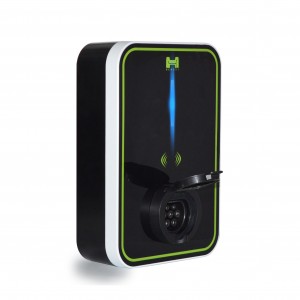

Cost-effective Mode 3 Level 2 EV Charger 7KW without screen socket type plug and play
Product Description
|
Parameter
|
Product model
|
Dark house Ⅰ Series
|
|
|
Structure
|
Size(mm)
|
350(H)*240(W)*95(D)mm
|
|
|
Installation
|

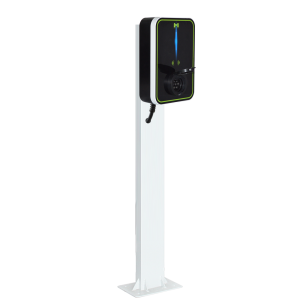

Wall-mounted Type / Floor-standing Type Installation
|
||
|
Charging cable
|
5M(16.4FT) standard, 7.5m / 10m or other size customizable
|
||
|
Weight
|
8.0kg (Including charging gun)
|
||
|
Electrical Specifications |
Input voltage
|
AC220V±20% / AC380V±10%
|
|
|
Frequency rating
|
45~65HZ
|
||
|
Power rating
|
7KW /11KW /22KW Optional
|
||
|
Measuring accuracy
|
1.0 grade
|
||
|
Output voltage
|
7KW：AC 220V±20% 11/22KW ：AC 380V±10%
|
||
|
Output current
|
7KW:32A 11KW:3*16A 22KW:3*32A
|
||
|
Measurement accuracy
|
OBM 1.0
|
||
|
Function |
Indicator light
|
Y
|
|
|
4.3 inch display screen
|
Optional
|
||
|
Communication interface
|
WIFI/4G/OCPP1.6/LAN Optional
|
||
|
Operating conditions
|
Working temperature
|
-40~+65℃
|
|
|
Relative humidity permission
|
5%~95%(non-condensation)
|
||
|
Maximum altitude permission
|
≤3000m
|
||
|
IP grade
|
≥IP55
|
||
|
Cooling way
|
Natural cooling
|
||
|
Applicable ambient
|
Indoor/outdoor
|
||
|
ECT
|
UV resistance
|
||
|
MTBF
|
≥100000H
|
||
APP Functions
Charging by appointment Charge late at night by appointment, low-carbon, eco-friendly, lower electricity bills
Real-time data Real-time display of current charging voltage, current and power Accurate metering of the charge pile’s electricity consumption, so that every dollar of electricity used is clearly visible.
Charging station historical usage report Daily and monthly charging status at a glance
Smart WIFI networking OTA upgrades; improved troubleshooting through remote diagnostics
Power adjustment (to be updated soon) Customised charging power, adjustable up to 1.8KW-22KW.
