China wholesale Fast Chaging Station - EV Charging Station Cable 16A Electric Vehicle Car Charger EVSE Wallbox Wall Mount gbt Cable Level 2 240V 11KW – Hengyi
China wholesale Fast Chaging Station - EV Charging Station Cable 16A Electric Vehicle Car Charger EVSE Wallbox Wall Mount gbt Cable Level 2 240V 11KW – Hengyi Detail:
The EV Charging station 16A GB/T 20234 380V,casing colours available in black and white, customised casing colours and charging string lengths available for larger orders. Compatible with GB/T 20234 , Designed with safety in mind, there are protection mechanisms forover-current,over-voltage andover-temperature problems, with a aggregate of 8 safety measures to cover the device and the auto during charging. The casing is made of ABS PC injection moulding and has a fire standing of UL94V_0. The factors of the main board are handed in well- known manufacturers, with dependable quality. The main control MCU is characterised by low power consumption, high performance and high integration. The operating temperature covers-40 °C-85 °C, which can meet the harsh working terrain.The EV charging string is made of high chastity bobby with excellent electrical conductivity, slow heating of the captain during high current charging and long operating time. The external cover is made of high quality cable, which is resistant to erosion and low temperatures, so that the charging string won’t harden due to low temperatures and help the device from working duly. Easy to install, it’s recommended to use hard wiring for the input power string. The installation height of the charging device is about1.5 M from the ground. a hook is included to store the ev charging string.
★Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

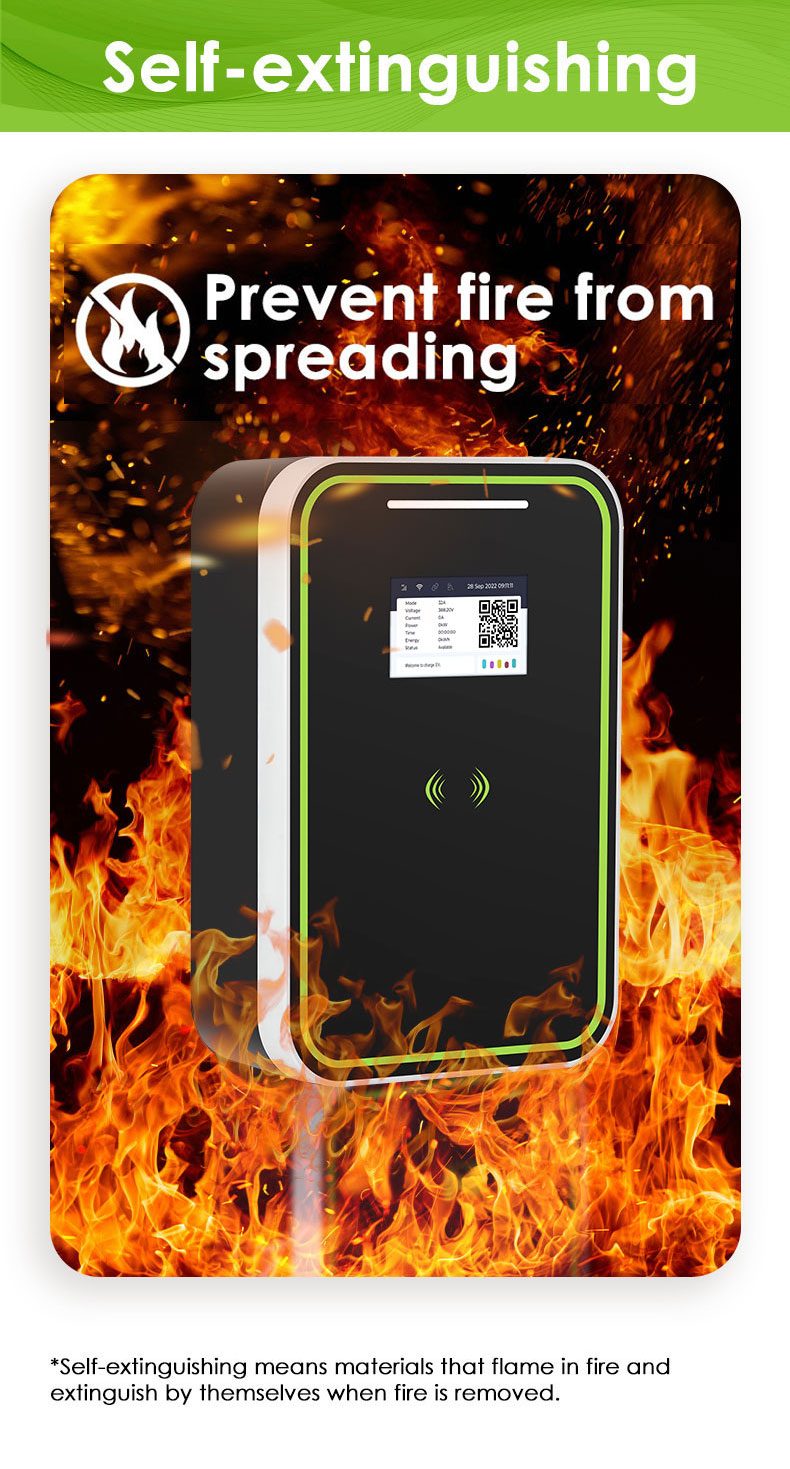

★Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents
★HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.
★UNIVERSAL – The charger is GB/T 20234 compliant and capable of charging hybrid/plug-in electric vehicles.

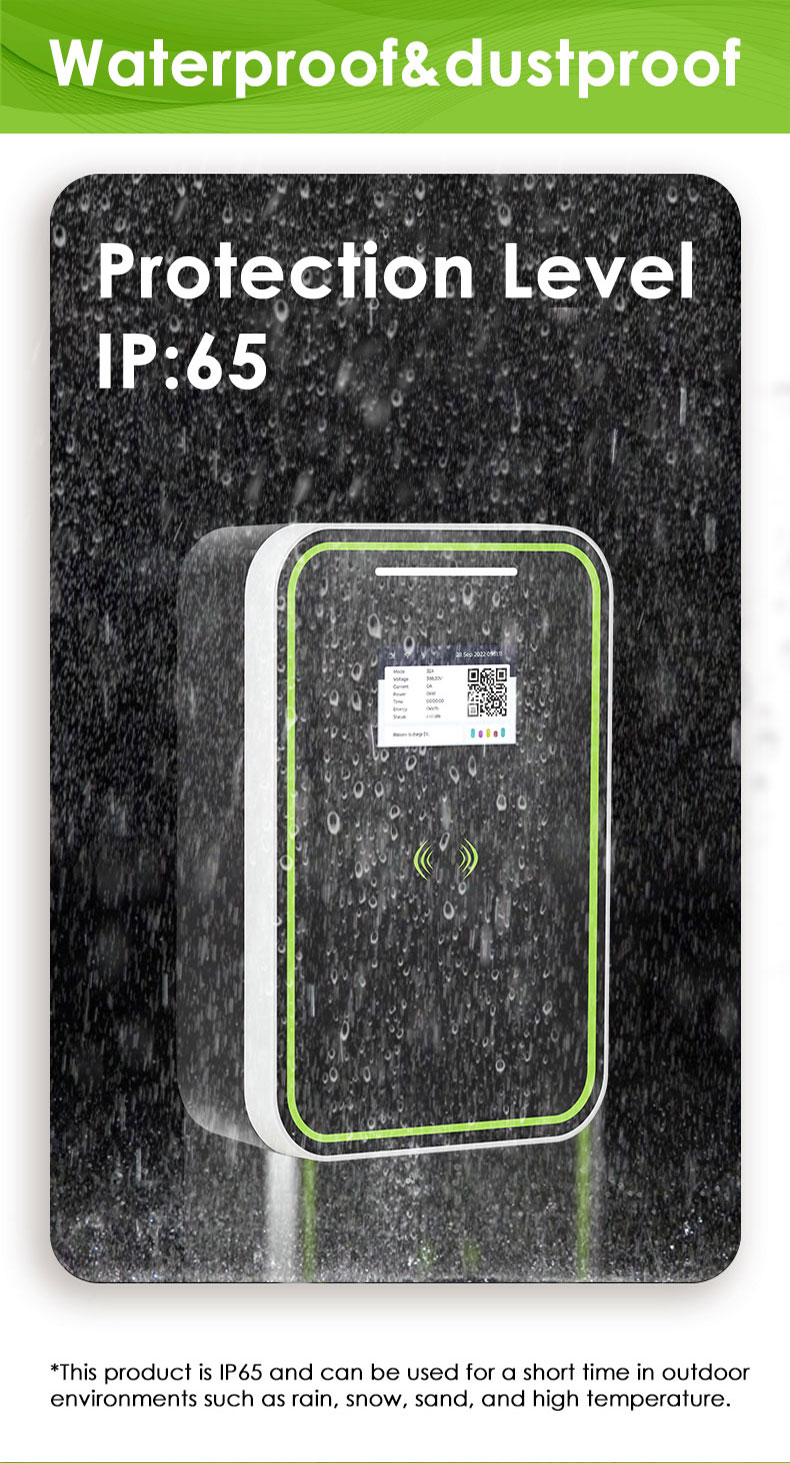

★Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out
★Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.
★Professional customer service – HENGYI’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!
★4.3inch LCD – The screen shows you the charging status, and if there is a charging failure, it will let you know the corresponding problem through the screen and indicator lights.
|

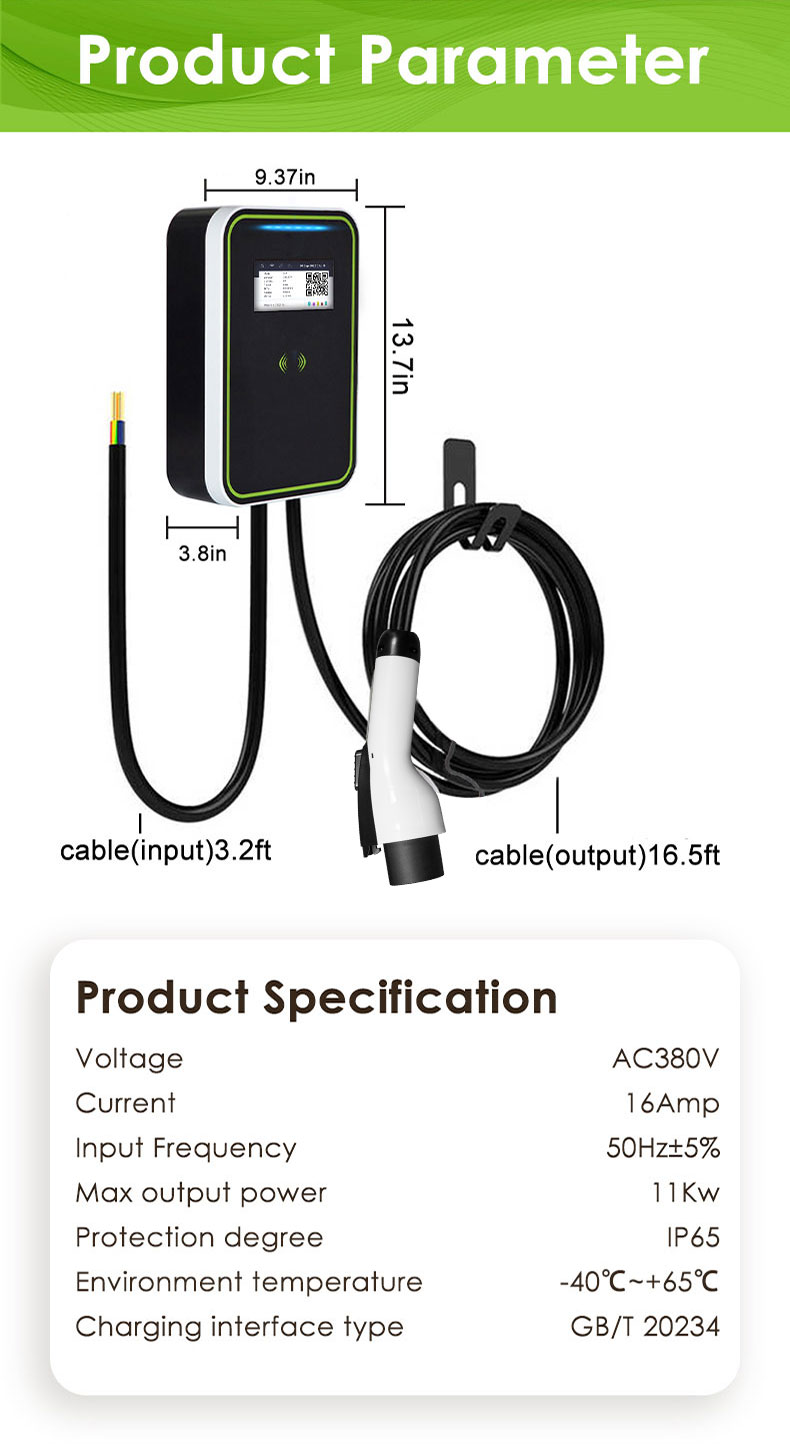

Structure Appearance |
Dimension |
350(H) × 240(W) × 95(D)mm |
|
User Interface |
4.3 inch display with Indicator light |
|
|
Installation method |
Wall-mounted Type/Floor-standing Type Installation |
|
|
Wiring method |
Bottom enter&out |
|
|
Cable length |
5M(16.4FT) standard,7.5m / 10m or other size customizable |
|
|
Weight |
8.0kg (Including charging gun) |
|
|
Electrical Specification |
Input voltage |
380V |
|
Frequency |
45-65Hz |
|
|
Power rating |
11KW |
|
|
Measurement accuracy |
OBM 1.0 |
|
|
Output voltage |
AC380±20% |
|
|
Output current |
16A |
|
|
Standby power |
5W |
|
|
Function |
Indicator light |
YES |
|
Display |
YES |
|
|
Protection |
Design standard |
GB/T 20234 |
|
Protection |
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA + 6mA DC leakage protection |
|
|
Operating Environment |
Working temperature |
-40-+65℃ |
|
Working Humidity |
5%-95% no condensation |
|
|
Working altitude |
≤3000m |
|
|
IP grade |
≥IP65 |
|
|
Cooling mode |
Natural cooling |
|
|
Applicable |
Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
|
|
Special protection |
UV resistance |
|
|
MTBF |
≥100000H |
|
|
Optional |
Installation components |
Stand pillar (customize) |
|
Communication interface |
WIFI/4G/OCPP1.6/LAN (customize) |
|
|
RFID |
2 user cards (customize) |
|
|
Leakage protection |
Upgrade to Type A 30mA AC + 6mA DC（three phase） |
|
|
Home load balancing |
DLB(customize) |
|
|
Socket outlet |
Change charging cable to socket(not support SAE standard) |
|
|
Product properties |
APP(customize) |
Product detail pictures:
