Dark Horse AC electric car charger 7KW is in an elegant design. It follows IEC 61851, 7KW, 220V, 32A, 3 functions optional such as plug and plays/ RFID card authorization/APP make it very suitable for home charging. High performance charging control board of our best 7KW EV charger is compatible with all styles of electric vehicle charging. Leakage protection , Upgrade to Type A 30mA AC (single phase) and IP65 waterproof and UV protection ABS casing ensure trustability and safety. It provides customers with quality, security and a friendly charging experience.
★Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.
★Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents
★HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.
★UNIVERSAL – The charger is IEC 61851 compliant and capable of charging hybrid/plug-in electric vehicles.
★Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out
★Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.
★Professional customer service – HENGYI’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!
★4.3inch LCD – The screen shows you the charging status, and if there is a charging failure, it will let you know the corresponding problem through the screen and indicator lights.
|

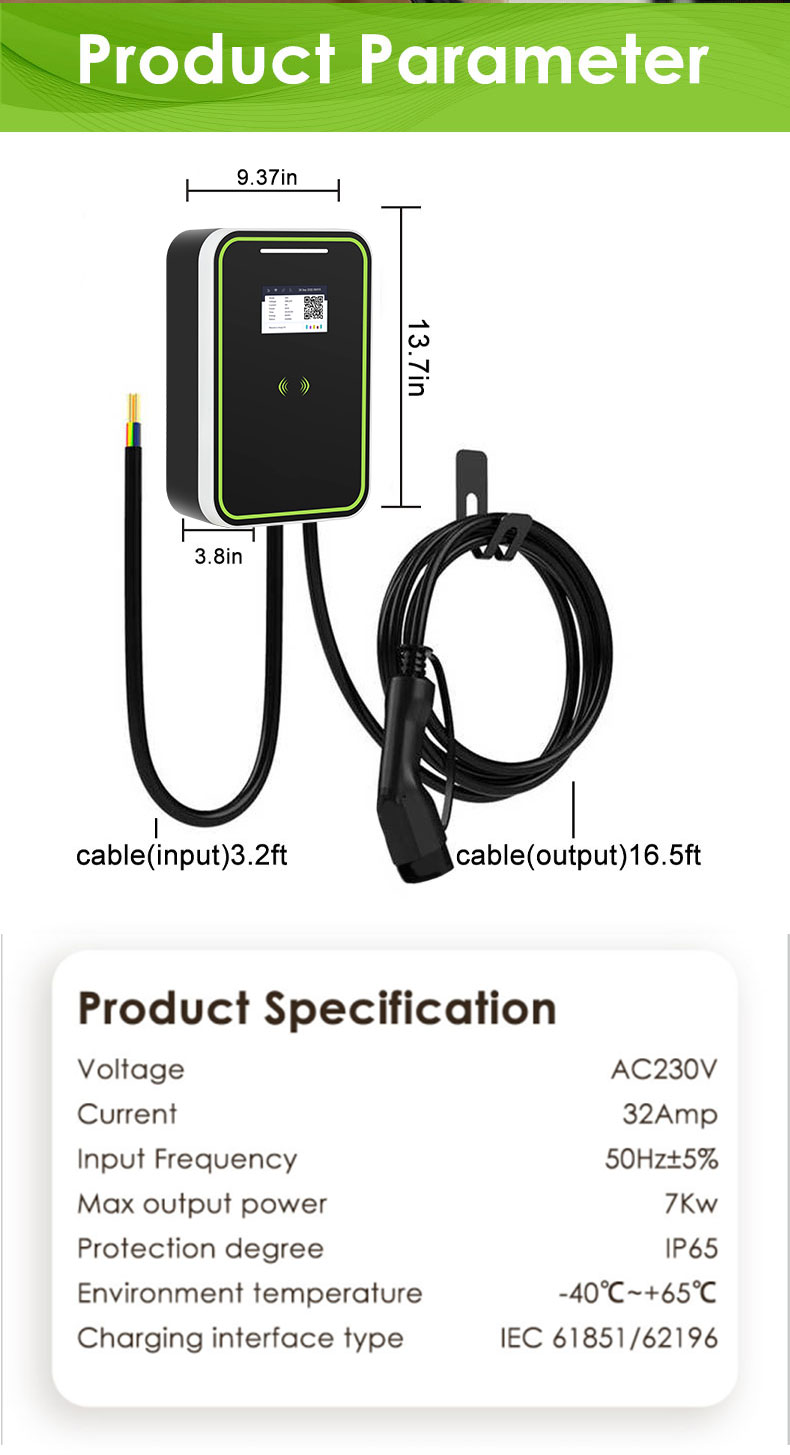

Structure Appearance |
Dimension |
350(H) × 240(W) × 95(D)mm |
|
User Interface |
4.3 inch display with Indicator light |
|
|

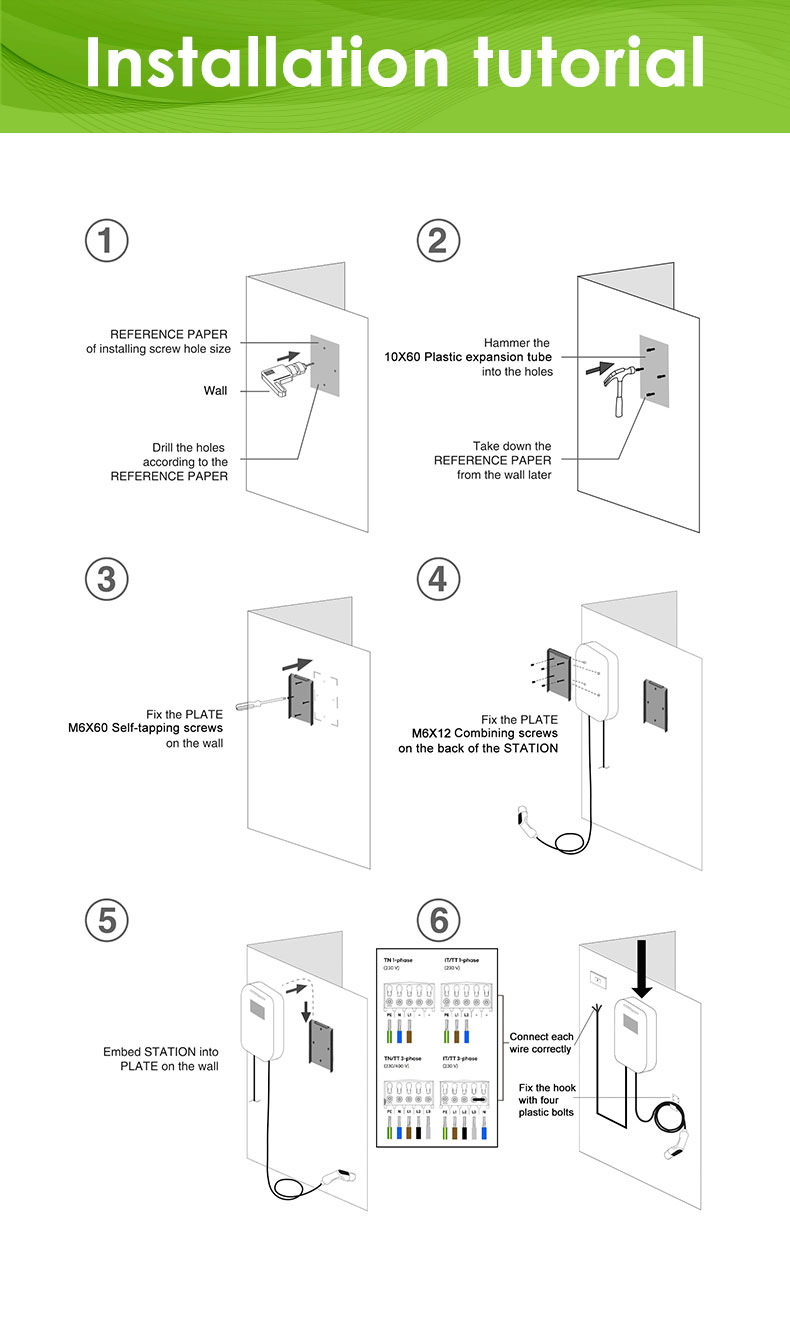

Installation method |
Wall-mounted Type/Floor-standing Type Installation |
|
|
Wiring method |
Bottom enter&out |
|
|
Cable length |
5M(16.4FT) standard,7.5m / 10m or other size customizable |
|
|
Weight |
8.0kg (Including charging gun) |
|
|
Electrical Specification |
Input voltage |
220V |
|
Frequency |
45-65Hz |
|
|
Power rating |
7KW |
|
|
Measurement accuracy |
OBM 1.0 |
|
|
Output voltage |
AC220±20% |
|
|
Output current |
32A |
|
|
Standby power |
5W |
|
|
Function |
Indicator light |
YES |
|
Display |
YES |
|
|
Protection |
Design standard |
IEC 61851 |
|
Protection |
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection |
|
|
Operating Environment |
Working temperature |
-40-+65℃ |
|
Working Humidity |
5%-95% no condensation |
|
|
Working altitude |
≤3000m |
|
|
IP grade |
≥IP65 |
|
|
Cooling mode |
Natural cooling |
|
|
Applicable |
Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
|
|
Special protection |
UV resistance |
|
|
MTBF |
≥100000H |
|
|
Optional |
Installation components |
Stand pillar (customize) |
|
Communication interface |
WIFI/4G/OCPP1.6/LAN (customize) |
|
|
RFID |
2 user cards (customize) |
|
|
Leakage protection |
Upgrade to Type A 30mA AC (single phase) |
|
|
Home load balancing |
DLB(customize) |
|
|
Socket outlet |
Change charging cable to socket(not support SAE standard) |
|
|
Product properties |
APP(customize) |
Product detail pictures:
