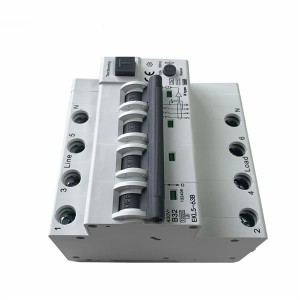

B Type RCBO B16 0.03A RCBO 16 Amp 30mA B16 Type B RCD 16A Circuit Breaker
B Type RCBO B16 0.03A RCBO 16 Amp 30mA B16 Type B RCD 16A Circuit Breaker Detail:
We strive for excellence, services the customers, hopes to be the top cooperation team and dominator business for personnel, suppliers and prospects, realizes benefit share and continual promotion for Competitive Price for China Professional Manufacturer Highly Top Quality Mini Circuit Breaker and Residual Current Circuit Breaker, Top quality will be the key factor with the company to stand out from other competitors. Seeing is Believing, want more data? Just trial on its merchandise!
Competitive Price for China Circuit Breaker, Breaker, Taking the core concept of “to be the Responsible”. We are going to redound up on society for high quality merchandise and good service. We are going to initiative to participate in international competition to be a first- class manufacturer of this product in the world.
| Item | Type B RCBO | |
| Product Model | HENGYI-80BO | |
| Rated Current | 16A , 20A , 25A , 32A , 40A , 50A , 63A | |
| Poles | 2Pole (1P+N) | 4Pole (3P+N) |
| Rated voltage Ue | 2Pole 240V~ | 4Pole 415V~ |
| Reference Standard | IEC61009-1 , IEC62423 | |
| Tripping Characteristics | B / C | |
| Insulation Voltage | 500V | |
| Rated frequency | 50/60Hz | |
| Rated residual operation current(I n) | 30mA , 100mA , 300mA | |
| Short-circuit current Inc= I c | 6000A | |
| Energy limiting class | 3 | |
| Rated impulse withstand voltage(1.5/50) Uimp | 4000V | |
| Dielectric test voltage at ind.Freq. for 1min | 2kV | |
| Electrical life | 4000 Cycles | |
| Mechanical life | 10000 Cycles | |
| Protection Degree | IP20 | |
| Ambient temperature | -5℃ upto +40℃ | |
| Storage temperature | -25℃ upto +70℃ | |
| Terminal connection type | Cable/Pin type busbar U-type busbar |
|
| Terminal size top/bottom for cable | 25mm² 18-3AWG | |
| Terminal size top/bottom for busbar | 25mm² 18-3AWG | |
| Tightening torque | 2.5Nm 22In-Ibs | |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
|
| Connection | From top | |
| Combination with accessories |
Auxiliary contact | EKM1-OF |
| Alarm contact | EKM1-FB | |
| Shunt release | EKM1-MX | |
