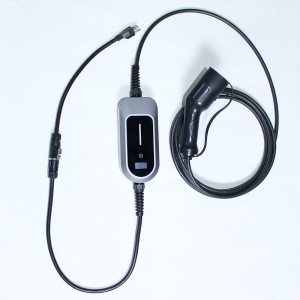

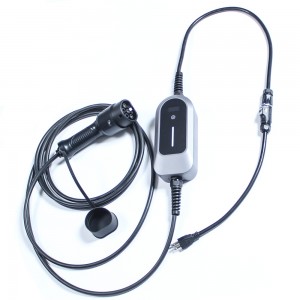

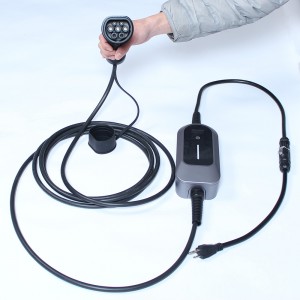

Adjustable Current Electric Vehicle Portable Ev Charger With IEC62196 Type 2 Charging Plug
Product Features
To replenish the battery of an electric vehicle by drawing power from a household socket. The maximum current does not exceed 16A, protecting the safety of household electricity. Lightweight and compact, it is suitable for carrying with you in your car and can be used to charge your electric car anywhere there is a socket.
Product Description
Adaptation to vehicles
Our products can be adapted to all HEV and PHEV vehicles on the market that use the Euro 2 charging interface.
Power current regulation
Our EV chargers support the adjustment of the charging current, which can be switched between 8A, 10A, 13A and 16A. The current can be limited according to the size of the pick-up line cable to prevent the charging current from overloading the wiring in the home and causing the cable to overheat and fire, tripping the circuit breaker etc.
On-screen display
The portable electric vehicle charging station can display the charging voltage, charging current, charging power, charging time, internal temperature, regulated power rating and other parameters in real time while charging. This gives you a clear overview of the operating status of the unit.
Safety protection
The product has 10 built-in protection functions: Over temperature protection, Adhesion check, Reverse connection protection, Lightning surge protection, Type A leakage protection. Ground protection, Short circuit protection, Overload protection, Undervoltage protection, Over voltage protection.
Packaging
The product is packed in a cardboard box with internal cushioning material to protect the product during transport. The size of the carton is 40*30*10cm.
Warranty and quality
We offer a 12-month warranty and lifetime technical support. Our products are carefully selected at the raw material procurement stage to ensure product quality at source. Production processes and procedures are strictly enforced during the production phase to ensure consistency. Dozens of tests are carried out before the product is packaged off the production line to reduce the probability of failure.
Parameter
Parameter |
Product model |
SEVK12235AC02EU |
Structure |
Product Series |
Pony |
Size(mm) |
220(H)*95(W)*65(D)mm |
|
Charging cable |
5m Standard Support Custom Length |
|
Weight |
4kg(with plug) |
|
Electrical Specifications |
Input voltage |
AC220V±20% |
Frequency rating |
45~65HZ |
|
Power rating |
3.5 KW |
|
Measuring accuracy |
1.0 grade |
|
Output voltage |
AC220V±20% |
|
Current rating |
8A , 10A , 13A , 16A Adjustable |
|
Function |
LED |
Y |
Display |
Y |
|
RFID |
N |
|
Operating conditions |
Working temperature |
-40~+65℃ |
Relative humidity permission |
5%~95%(non-condensation) |
|
Maximum altitude permission |
≤3000m |
|
IP grade |
IP67 |
|
Cooling way |
Natural cooling |
|
Applicable ambient |
Indoor/outdoor |
|
ECT |
UV resistance |
|
MTBF |
≥100000H |
