7KW 32A Wallmounted AC EV Charger For Electric Vehicle Charging
Product Detail

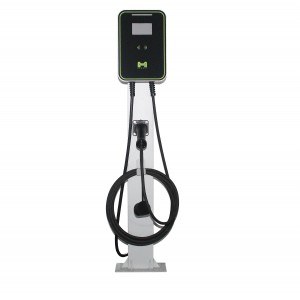

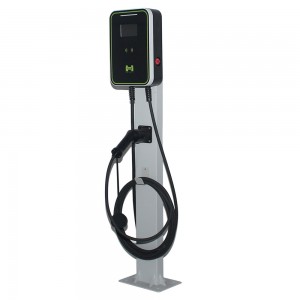

Dark Horse AC electrical vehicle chargers is in a elegant design. It follows IEC 61851 Type2 and SAE J1772 Type1, 7kW 32A single phase, 3 functions such as plug and play/RFID card authorization/APP make it very suitable for homecharging. High performance charging control board is compatible with all styles electric vehicles charging. Leakage protection Type-A and IP55 waterproof and UV protection ABS casing insure the trustability and safety. It provides customers with quality, security and friendly charging experience.
Crucial features and Benefits
7kW 32A AC charger for domestic charging use.
IEC 62196 Type-2 and SAE J1772 Type-1 single charging plug.
UV protection ABS case with elegant design.
Integrated charging control board suitable for all styles electric vehicles charging.
Current, voltage, energy, ground fault alarm and leakage protection Type-A included.
Temperature discovery, fault alarm and emergency stop button insure the security while charging.
OEM for your own logo service available.
The lit LED light strip with different colors allows customers to easily notice the charging status.
Wall-mount and pillar-mount options suitable for many different kinds installation operations.

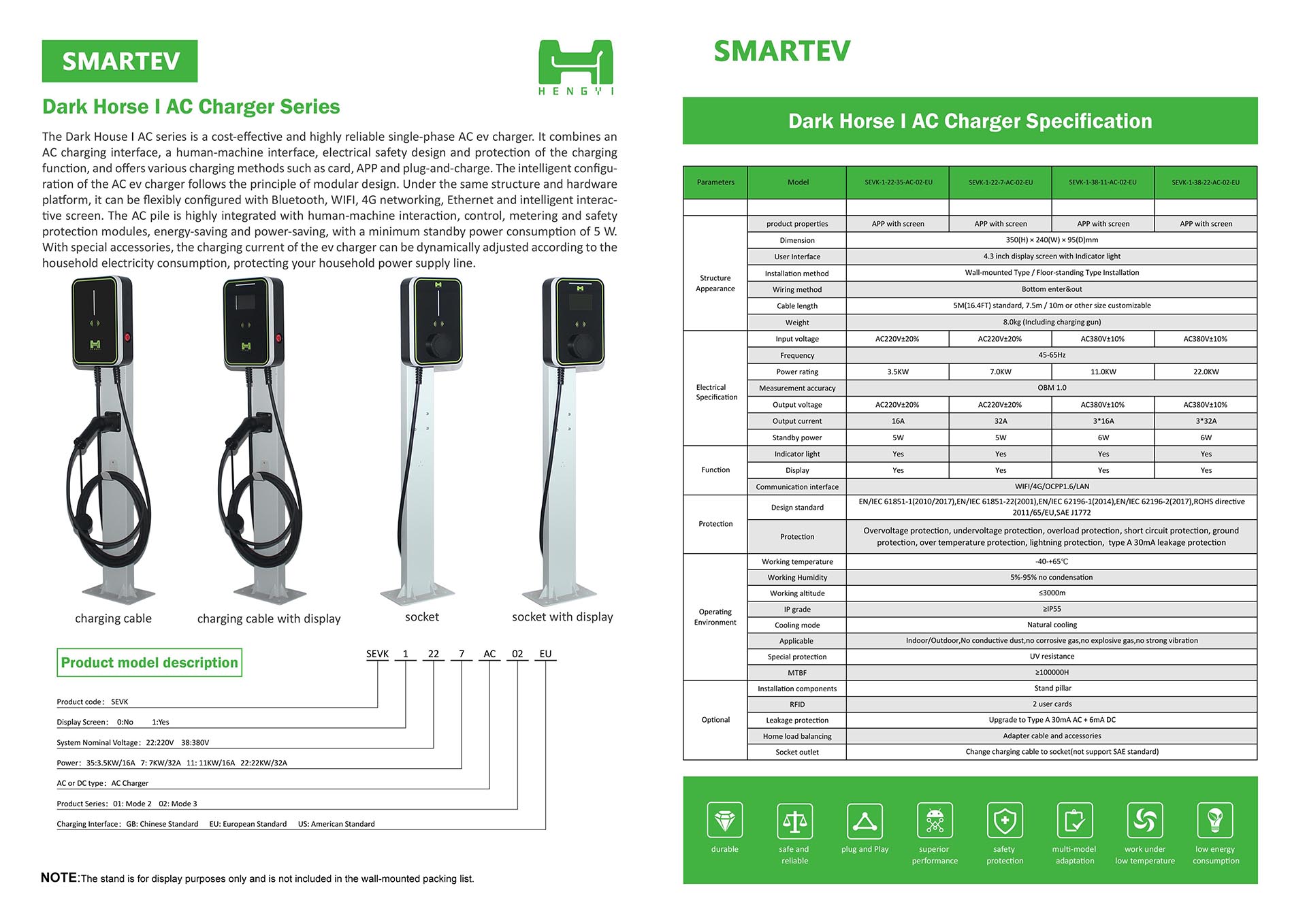

Technical specifications
Charging type: Mode 3 AC charging
Charging plug: IEC 62196 Type-2, SAE J1772 Type-1
Input voltage: 220V +/- 10%, one phase
Output voltage: 220V +/- 10 %
Rated AC EV charger power: 7KW 32A
Access to the station: Plug & Charge / RFID card authorization / APP control
Leakage protection: Type-A 30mA
IP55, IK08 protection standing
. Operation Temperature -20°C – 50°C, 5%– 95% non-condensation, < 2000m altitude
