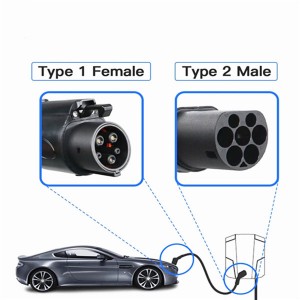

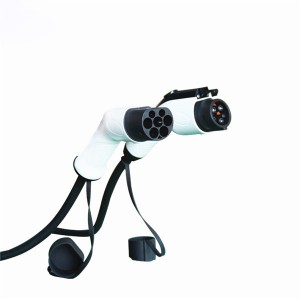

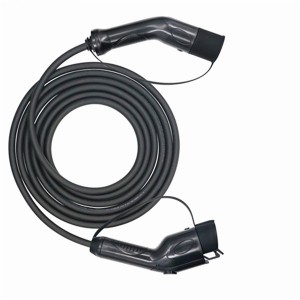

16A 32A Type 1 to Type 2 EV Charging Cable EVSE Electric Car Charger

Short Description:

16A 32A Type 1 to Type 2 EV Charging Cable EVSE Electric Car Charger. With our prosperous working experience and thoughtful solutions, now we have been regarded to be a dependable supplier for lots of intercontinental prospective buyers.With the first-class merchandise, excellent service, fast delivery and the best price, we’ve won highly praise foreign.

Rated Current:: 16A ,32Amp

Operating Voltage:: 110V~250AC

Insulation Resisitance: >1000MΩ

Therminal Temperature rise: <50K

Withstand Voltage: 2000V

Send email to us

Product Detail

Product Tags

Rated Current	16Amp		32Amp
Operation Voltage	AC 250V
Insulation Resistance	＞1000MΩ ( DC 500V )
Withstand Voltage	2000V
Pin Material	Copper Alloy, Silver Plating
Shell Material	Thermoplastic,Flame Retardant Grade UL94 V-0
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times
Contact Resistance	0.5mΩ Max
Terminal Temperature Rise	＜50K
Operating Temperature	-30°C~+50°C
Impact Insertion Force	>300N
Waterproof Degree	IP55
Cable Protection	Reliability of materials,antiflaming,pressure-resistant, abrasion resistance,impact resistance and high oil
Certification	TUV, UL , CE Approved
Model	Rated Current	Cable Specification	Cable Color	Cable Length
HENGYI-EVAE-16A	16 Amp	3 X 2.5mm² + 2 X 0.5mm²	Black Orange Green	(5Meter ,10Meter) The length of the cable can be customized
		3x14AWG+1X18AWG
HENGYI-EVAE-32A	32 Amp	3 X 6mm²+2 X 0.5mm²
		3x10AWG+1X18AWG
