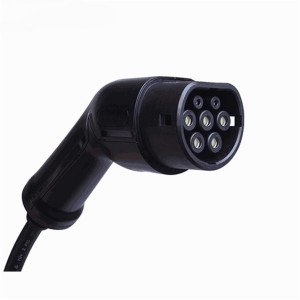

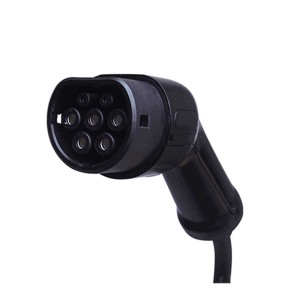

16A 32A EU Standrad IEC 62196-2 Type 2 Female EV Charging Connector

Short Description:

We can customise the colour of the rechargeable gun case to suit your needs. The colours available now are white and black, which are the regular products. If you need other colours, we have certain requirements for the minimum order quantity of the product, for example when you order more than 1000PCS at one time, we can mould the colour of the rechargeable gun into blue, yellow or other colours according to your requirements. We will send you some samples to confirm before the official production, to prevent the colour difference between the actual colour and the one you want due to the colour difference in the photos or videos taken.




  • Rated Current: 16A / 32A Single / Three Phase
  • OperationVoltage: AC 250V/480V
  • Insulation Resistance: >1000MΩ(DC500V)
  • Withstand Voltage: 3200V
  • Contact Resistance: 0.5mΩ Max
  • Product Detail

    Product Tags

    Rated Current 16A, 32A, 40A, 50A,70A, 80A
    Operation Voltage AC 120V / AC 240V
    Insulation Resistance >1000MΩ(DC 500V)
    Withstand Voltage 2000V
    Contact Resistance 0.5mΩ Max
    Terminal Temperature Rise <50K
    Operating Temperature -30°C~+50°C
    Coupled Insertion Force >45N<80N
    Impact Insertion Force >300N
    Waterproof Degree IP55
    Flame Retardant Grade UL94 V-0
    Certification TUV,CE Approved
