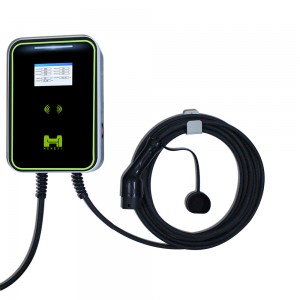

11KW 16A wallmounted home use ev charger with type 2 charging cable

Short Description:

The Dark House l AC series is a cost-effective and highly reliable single-phase AC ev charger. It combines an AC charging interface,a human-machine interface, electrical safety design and protection of the chargingAC charging interface,a human-machine interface, electrical safety design and protection of the charging function, and offers various charging methods such as card, APP and plug-and-charge. The intelligent configu-ration of the AC ev charger follows the principle of modular design.


Product Detail

Product Tags

Product Detail

The Dark House l AC series is a cost-effective and highly reliable single-phase AC ev charger. It combines an AC charging interface,a human-machine interface, electrical safety design and protection of the chargingAC charging interface,a human-machine interface, electrical safety design and protection of the charging function, and offers various charging methods such as card, APP and plug-and-charge. The intelligent configu-ration of the AC ev charger follows the principle of modular design. Under the same structure and hardwareration of the AC ev charger follows the principle of modular design. Under the same structure and hardware platform, it can be flexibly configured with Bluetooth, WIFI,4G networking, Ethernet and intelligent interac-tive screen. The AC pile is highly integrated with human-machine interaction, control, metering and safetytive screen. The AC pile is highly integrated with human-machine interaction, control, metering and safety protection modules, energy-saving and power-saving, with a minimum standby power consumption of 5 W. With special accessories, the charging current of the ev charger can be dynamically adjusted according to theWith special accessories, the charging current of the ev charger can be dynamically adjusted according to the household electricity consumption, protecting your household power supply line.

APP Functions

Charging by appointment Charge late at night by appointment, low-carbon, eco-friendly, lower electricity bills

Real-time data Real-time display of current charging voltage, current and power Accurate metering of the charge pile's electricity consumption, so that every dollar of electricity used is clearly visible.

Charging station historical usage report Daily and monthly charging status at a glance

Smart WIFI networking OTA upgrades; improved troubleshooting through remote diagnostics

Power adjustment  Customised charging power, adjustable up to 1.8KW-22KW.

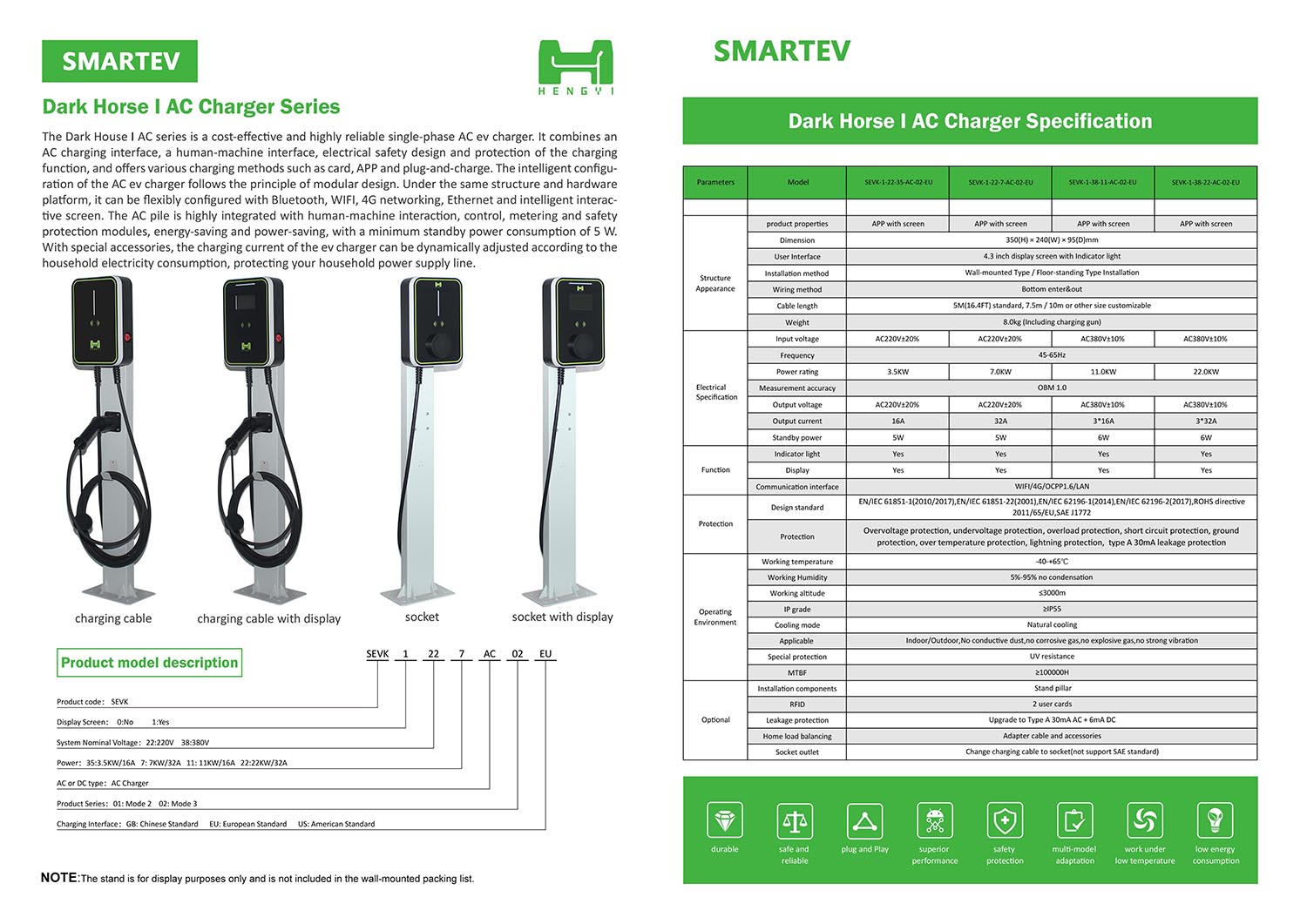

Parameter

Product model

Dark house Ⅰ  Series

Structure

Size(mm)

350(H)*240(W)*95(D)mm

Installation

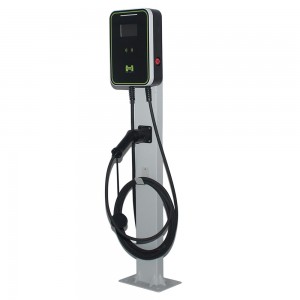

Wall-mounted Type / Floor-standing Type Installation

Charging cable

5M(16.4FT) standard, 7.5m / 10m or other size customizable

Weight

8.0kg (Including charging gun)

Electrical Specifications

Input voltage

AC220V±20% / AC380V±10%

Frequency rating

45~65HZ

Power rating

7KW /11KW /22KW Optional

Measuring accuracy

1.0 grade

Output voltage

7KWAC 220V±20%     11/22KW AC 380V±10%

Output current

7KW:32A   11KW:3*16A   22KW:3*32A

Measurement accuracy

OBM 1.0

Function

Indicator light

Y

4.3 inch display screen

Optional

Communication interface

WIFI/4G/OCPP1.6/LAN Optional

Operating conditions

Working temperature

-40~+65℃

Relative humidity permission

5%~95%(non-condensation)

Maximum altitude permission

≤3000m

IP grade

≥IP55

Cooling way

Natural cooling

Applicable ambient

Indoor/outdoor

ECT

UV resistance

MTBF

≥100000H
